Image Cropper

    Returns: JSON

    Returns a path to an image, along with information about focal point and available crops

    When image Cropper is used on a Media Type the crops are shared between all usages of a Media Item. This is called global crops.

    If Image Cropper is used on a Document Type, the file and crops will be local to the Document.

    Notice its possible make local crops on shared Media Items via the Media Picker 3 Property Editor.

    Read about the Media Picker 3

    Settings

    Prevalues

    You can add, edit & delete crop presets the cropper UI can use.

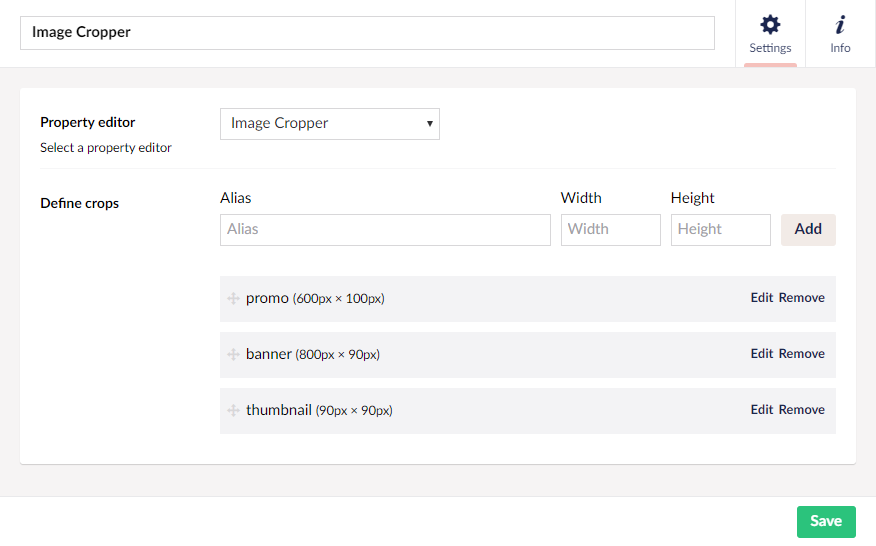

    Data Type Definition Example

    Image Cropper Data Type Definition

    Content Example

    Provides a UI to upload an image, set a focal point on the image, and optionally crop and scale the image to predefined crops. By default, images in the cropper will be shown based on a set focal point, and only use specific crops if they are available.

    The cropper comes in 3 modes:

    • Uploading an image
    • Setting a focal point
    • Cropping the image to predefined crops

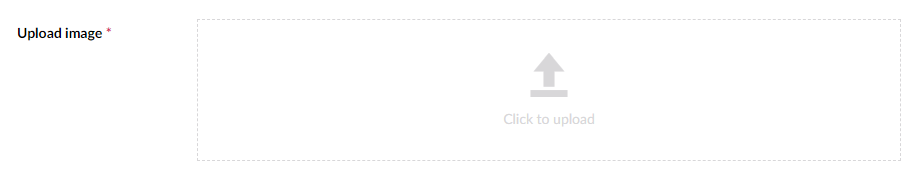

    Uploading images

    The editor exposes a drop area for files. Click it to upload an image. Image Cropper Upload

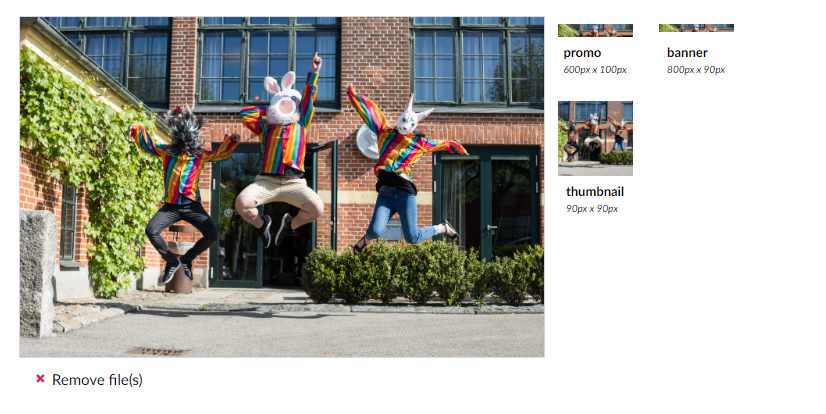

    Set focal point

    By default, the cropper allows the editor to set a focal point on the uploaded image. Next to the image, all the preset crops are shown to give the editor a preview of what the image will look like to the end user.

    Image Cropper Focal point

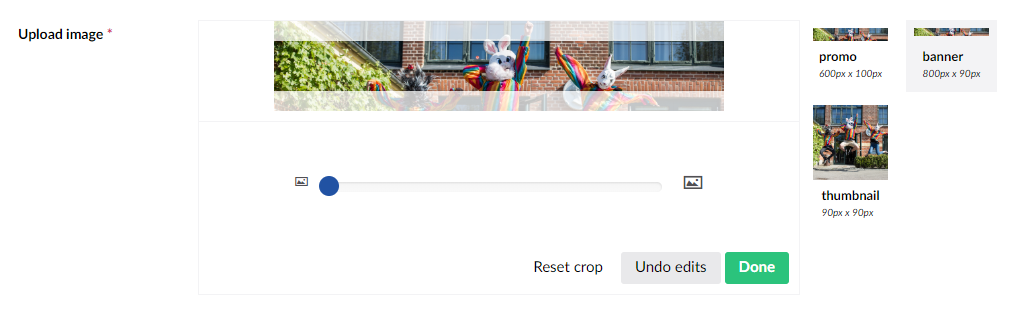

    Crop and resize

    If needed, the editor can crop the image to specific crop presets, to ensure the right part and size of the image is shown for a specific crop.

    Image Cropper Crop

    Powered by ImageProcessor

    ImageProcessor is an amazing project for modifying and processing images in an efficient manner.

    We bundle this library in Umbraco 7.1+ and you can therefore take full advantage of all its features out-of-the-box, like sharping, blurring, cropping, rotating and so.

    Sample code

    Image Cropper comes with an API to generate crop URLs, or you can access its raw data directly as a dynamic object.

    The Url Helper method can be used to replace the IPublishedContent extension methods. It has a set of extensions for working with URLs.

    For rendering a cropped media item, the .GetCropUrl is used:

    @Url.​GetCropUrl​(mediaItem: Model.Image, cropAlias: ​"Grid"​, htmlEncode: true);


    HtmlEncode is by default set to true, which means you only need to define the parameter if you want to disable HTML encoding.

    MVC View Example to output a "banner" crop from a cropper property with the alias "image"

    <img src="@(Url.GetCropUrl(Model.Image, "banner"))" />


    Or, alternatively:

    <img src="@(Model.Image.GetCropUrl("banner", Current.ImageUrlGenerator))" />


    MVC View Example to output create custom crops - in this case forcing a 300 x 400 px image

    @if (Model.HasValue("image"))
    {
        <img src="@Model.Image.GetCropUrl(height: 300, width: 400, imageUrlGenerator: Current.ImageUrlGenerator)" />
    }


    CSS background example to output a "banner" crop from a cropper property with alias "image"

    Set the htmlEncode to false so that the URL is not HTML encoded

    @{

        if (Model.Image != null)
        {
            var cropUrl = Url.GetCropUrl(Model.Image, "banner", false);
            <style>
                .myCssClass {
                    background-image: url("@cropUrl");
                }
            </style>
        }
    }


    MVC View Example on how to blur a crop

    <img src="@Url.GetCropUrl(Model.Image, propertyAlias: "image", cropAlias:
    "banner", useCropDimensions:true, furtherOptions:
    "&blur=11&sigma=1.5&threshold=10")" />


    Using ImageProcessors built-in gaussian blur

    Upload property replacement

    You can replace an upload property with a cropper, existing images will keep returning their current path and work unmodified with the cropper applied. The old image will even be available in the cropper, so you can modify it if you ever need to.

    However, be aware that a cropper returns a dynamic object when saved, so if you perform any sort of string modifications on your upload property value, you will most likely see some errors in your templates / macros.

    Add values programmatically

    See the example below to see how a value can be added or changed programmatically. To update a value of a property editor you need the Content Service.

    @using Umbraco.Core.PropertyEditors.ValueConverters
    @using Newtonsoft.Json
    @{
        // Get access to ContentService
        var contentService = Services.ContentService;

        // Create a variable for the GUID of the page you want to update
        var guid = Guid.Parse("32e60db4-1283-4caa-9645-f2153f9888ef");

        // Get the page using the GUID you've defined
        var content = contentService.GetById(guid); // ID of your page

        // Create a variable for the GUID of the media item you want to use
        var mediaKey = Guid.Parse("8835014f-5f21-47b7-9f1a-31613fef447c");

        // Get the desired media file
        var media = Umbraco.Media(mediaKey);

        // Create a variable for the image cropper and set the source
        var cropper = new ImageCropperValue {Src = media.Url()};

        // Serialize the image cropper value
        var cropperValue = JsonConvert.SerializeObject(cropper);

        // Set the value of the property with alias 'cropper'
        content.SetValue("cropper", cropperValue);

        contentService.Save(content);
    }


    Although the use of a GUID is preferable, you can also use the numeric ID to get the page:

    @{
        // Get the page using it's id
        var content = contentService.GetById(1234);
    }


    If Modelsbuilder is enabled you can get the alias of the desired property without using a magic string:

    @{
        // Set the value of the property with alias 'cropper'
        content.SetValue(Home.GetModelPropertyType(x => x.Cropper).Alias, cropperValue);
    }


    Going further with the image cropper

    Umbraco's Image Cropping functionality is based on the opensource library ImageProcessor.Web that has lots of additional options for transforming your images via query string parameters. Using the "GetCropUrl" method, specifying the crop alias:

    <img src="@(Model.Image.GetCropUrl("banner"))" />


    it's possible to retrieve an URL with a series of query string parameters that represents your crop settings, here an example of the returned URL for a specific crop name:

    https:{your-domain}/{image-name}.jpg?crop=0.10592105263157896,0.0061107012631250292,0.528981977613254,0&cropmode=percentage&width=690&height=719&rnd=132652178928630000

    Get all the crop urls for a specific image

    You can use the "GetCropUrl" method not only in the view. But for example in a business class method, where you can pass an "IPublishedContent", to iterate all the available crops dynamically, and get all the crop urls for a specific image, below you can find an example. Later, you can manipulate every obtained URL with other query string parameters provided by "ImageProcessor" library.

    internal Dictionary<string, string> GetCropUrls(IPublishedContent image)
    {
        //Instantiate the dictionary that I will return with "Crop alias" and "Cropped URL"
        Dictionary<string, string> cropUrls = new Dictionary<string, string>();

        if (image.HasValue("umbracoFile"))
        {
            var imageCropper = image.Value<ImageCropperValue>("umbracoFile");
            foreach (var crop in imageCropper.Crops)
            {
                //Get the cropped URL and add it to the dictionary that I will return
                cropUrls.Add(crop.Alias, image.GetCropUrl(crop.Alias));
            }
        }

        return cropUrls;
    }


    MVC view Example on how to set the background color

    Below the example to set the background color to white using the ImageProcessor bgcolor property.

    <img src="@Url.GetCropUrl(Model.Image, propertyAlias: "image", cropAlias: "banner",
    useCropDimensions:true, furtherOptions: "&bgcolor=white")" />


    List of the available parameters provided by the "ImageProcessor" library

    See the list of the available query string parameters provided by the "ImageProcessor" library. You can find all the examples in the official reference guide

    Attention: For security reasons only the following essential processors are enabled by default:

    • AutoRotate
    • BackgroundColor
    • Crop
    • Format
    • Quality
    • Resize

    You can find here how to enable other methods (see the Configuration section).
