Creating media

    Media in Umbraco is handled the same way as content. Instead of defining Document Types you define Media Types that acts as a base for media items. The following default Media Types are available:

    • Article - Used for uploading and storing documents.
    • Audio - used for uploading and storing digital audio files.
    • File - used for uploading and storing different types of files in the Media section.
    • Folder - a container for organizing media items in the media tree.
    • Image - used for uploading and storing images.
    • Vector Graphics (SVG) - used for uploading and storing Scalable Vector Graphics files which are text files containing source code to draw the desired image.
    • Video - used for uploading and storing video files.

    This means you don't have to define your own Media Types to start using the Media section. You have already got the tools for organizing and uploading the media.

    Creating a folder

    It is always a good idea to start by creating a folder for your Media items. Make sure to name your folders in a way that makes it possible for editors to upload their media items in the right place.

    To create a media folder, go to the Media section and click ... next to Media. Alternatively, you can right-click the Media node and choose Create. This will bring up the list of available media types. Select Folder, enter a name for the folder and click save.

    Uploading Media

    You can upload media in three ways:

    1. Click ... next to Media and choose the media type, enter a name for your media item and select the Click to upload field to choose a file type or drag the file into the upload field to upload the item.

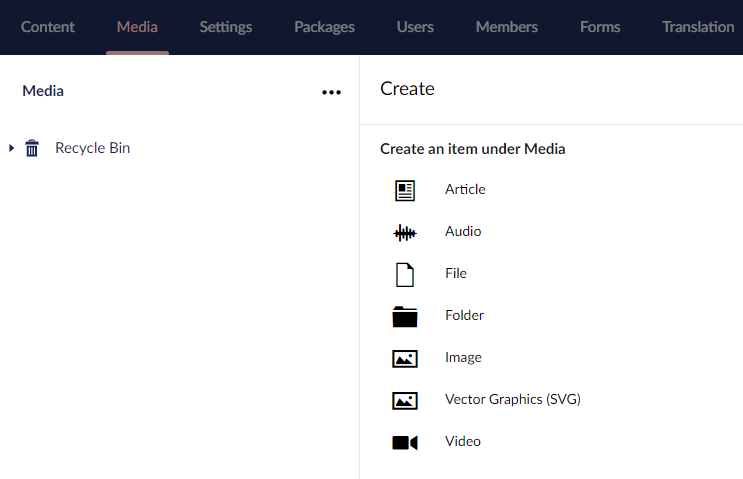

      Upload Media - Create

    2. Drag and drop your files in the Upload field in the Media section.

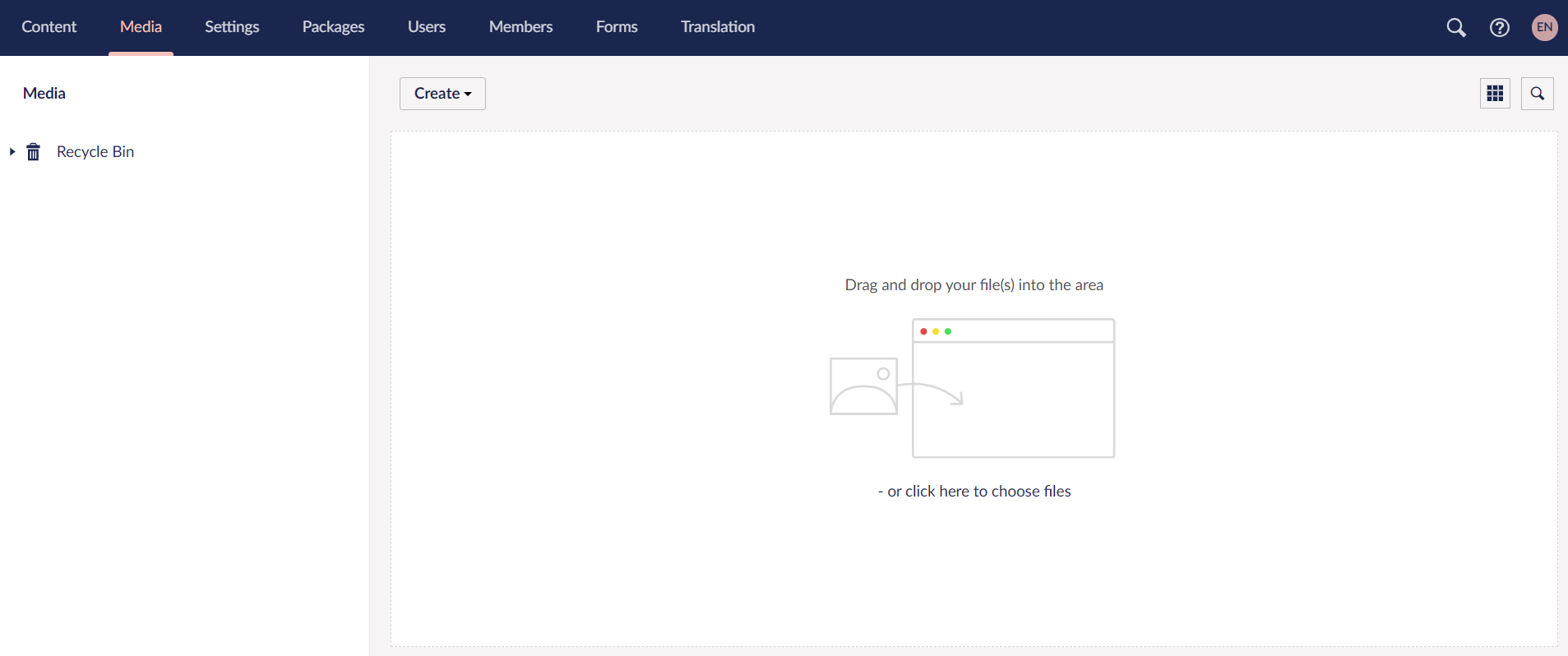

      Upload Media - Media section

      Umbraco will automatically detect the media type and create a media item in the folder. You can even drop entire folders (with subfolders) and the folder and file structure will be recreated.

    3. Click the Create dropdown, and choose the media item. Enter a name for your media item and select the Click to upload field or drag the file into the upload field to upload the item.

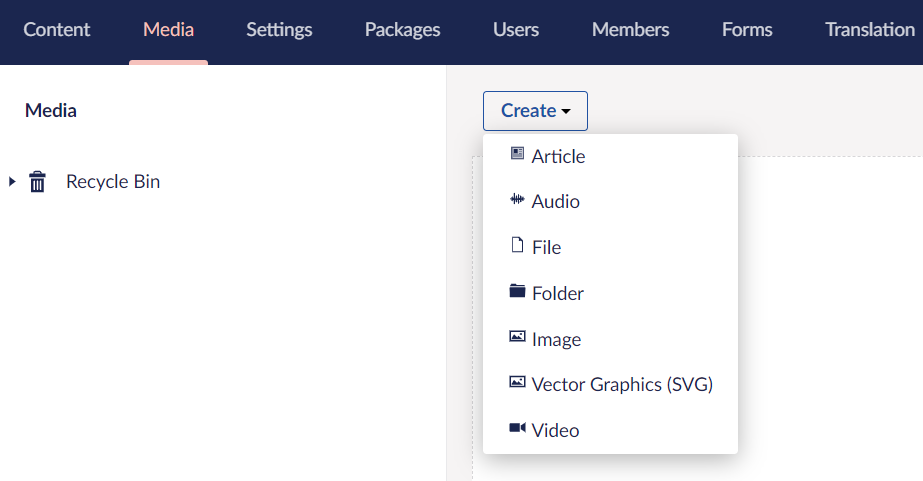

      Upload Media - Create Button

    The Image Media Type has 5 properties (Upload Image, Width, Height, Size and Type) that is populated once the image is uploaded. These properties can be viewed in the Media section and accessed in your templates.

    Except the Folder Media Type, the rest of the media types has 3 properties - Upload Image, Type, and Size.

    Organizing and editing media items

    The default view for the media section is a card view that let's you preview the different media files.

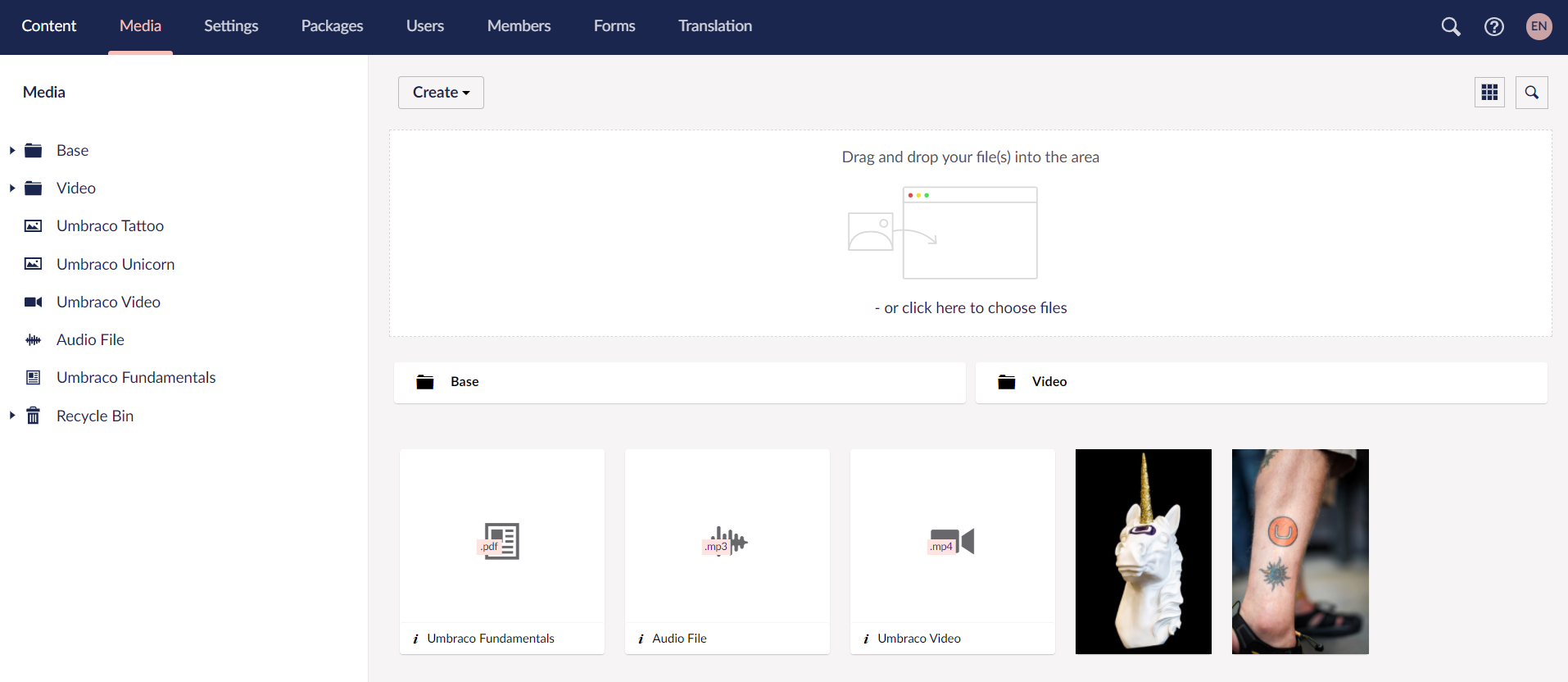

    Media Section - Cardview

    Click the items to select multiple media items and perform bulk operations like moving or deleting them. To edit properties on a media item, click the name of the item, which you will see once you hover over the item.

    Edit media item

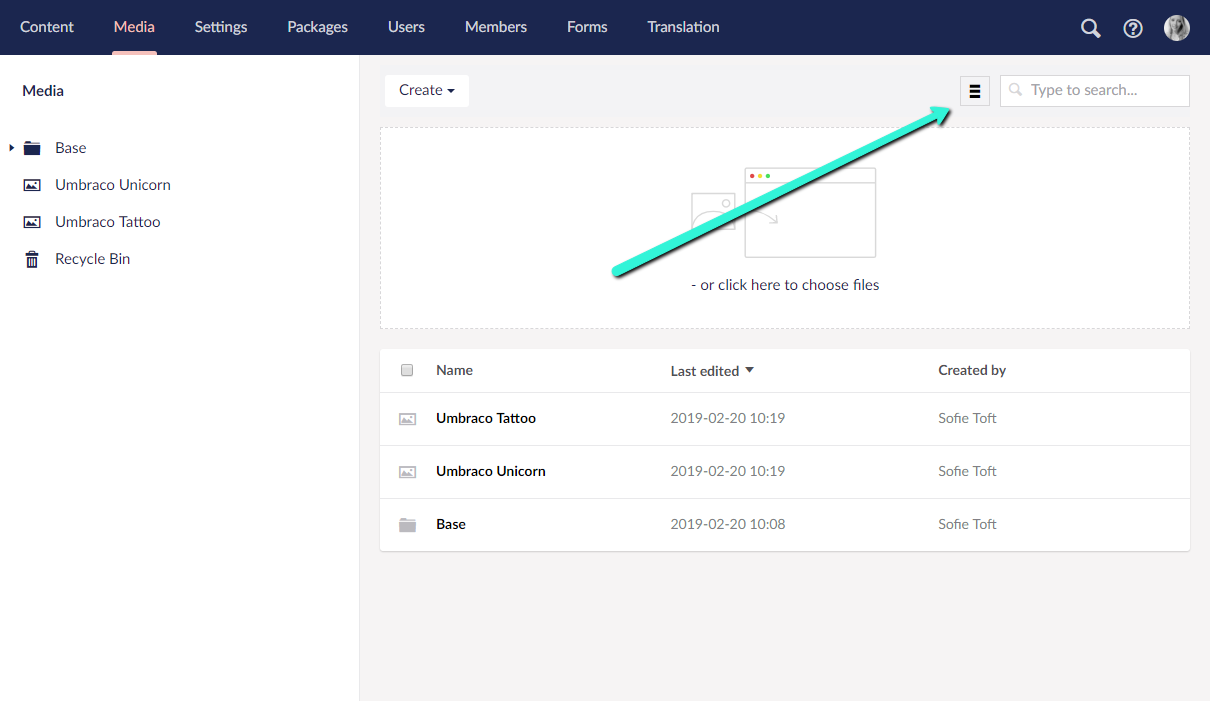

    You can switch to a list view by clicking the view toggle next to the search field and selecting the listview.

    Media Section - List view

    Using media items in content

    By adding a Media Picker property to a Document Type the editor will have the ability to select media items when creating content.

    The Upload File property on the images use the Image Cropper Data Type. If crops are added to this you can adjust the individual crops on the media item and access them in templates. You can add crops by editing the Upload File property on the Image Media type in the Settings section.

    Creating a Media Type

    You can create your own Media Types and add tabs, properties, and control the structure of the Media tree as you would with Document Types. This means you can store information that is specific to the media on the item itself.

    A Media Type is created in the Settings section using the Media Type editor.

    Go to the Settings section. On the Media Types node click ... next to Media Types (or right click the Media Types node) to bring up the context menu. Here you can choose between creating a New Media Type or a Folder.

    Having different folders for different media types makes it possible to restrict where media items can be created. Only allowing PDF uploads in a certain folder or employee images in another makes it easier for editors to keep the Media section organized.

    Choose New Media Type. This will open the Media Type editor. It is similar to the editor used for creating Document Types. The difference is that Media Types define items for the Media section and you do not have the ability to assign a template for the Media Type.

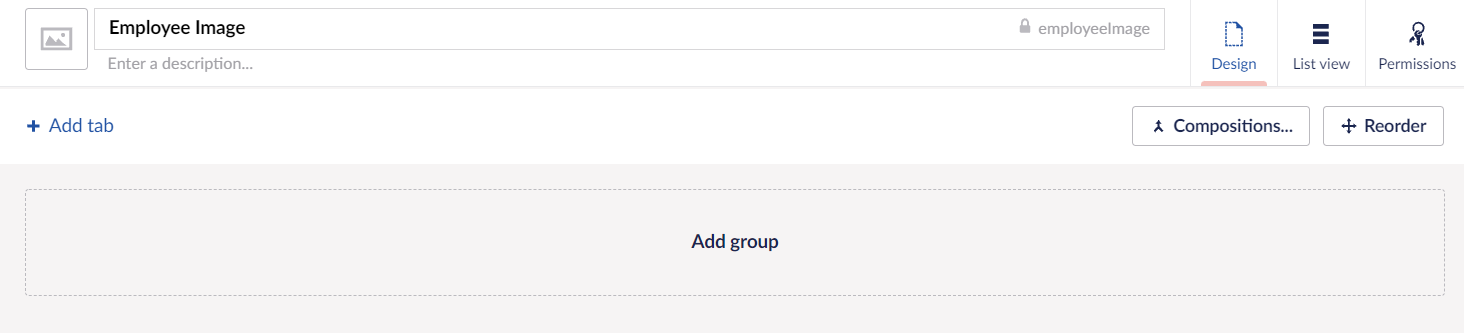

    Creating a Media Type

    Name the Media Type Employee Image. Choose an icon by clicking the icon to the left of the name.

    Adding tabs

    Before we start adding properties to the Media Type we need to create a group to put these in.

    Click on Add group and call it Image.

    Adding properties

    We need to add the same properties as on the default Image Media Type. These are:

    • umbracoFile
    • umbracoWidth
    • umbracoHeight
    • umbracoBytes
    • umbracoExtension

    On the Image group, click Add property. Name it Upload image and change the alias to umbracoFile.

    Click Add editor, search for cropper and choose Image cropper under Create new. This will create a new Image Cropper Data Type. The name of the new Data Type type is a bit long so rename it to Employee Image Cropper.

    Add two new crops called Thumbnail (200px x 350px) and wideThumbnail (350px x 200px).

    Defining crops

    Name the remaining four properties Width, Height, Size and Type and give them the aliases as mentioned in the image below. They should all use the Label editor. As mentioned before these properties will automatically be populated once an image has been uploaded.

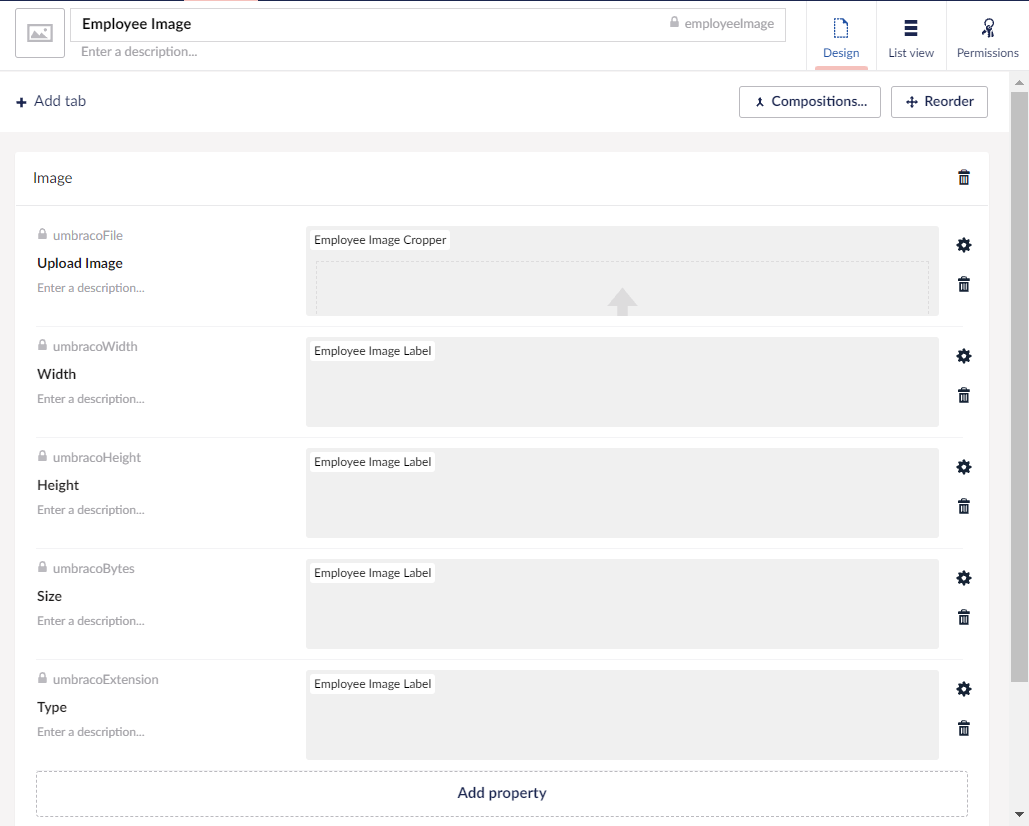

    Adding properties

    Defining a Media Type folder

    Next up, we'll create a folder to hold the employee images. We could use the existing Folder Media Type but that would mean editors can upload employee images to any folder of that type. If we create a folder specifically for employee images there is only one place to put them thus making it easier to have an organized Media section.

    Structure and inheritance

    Go back to the Settings and create a new Media Type and name it Employee Images. Select the folder icon by clicking the icon to the left of the name.

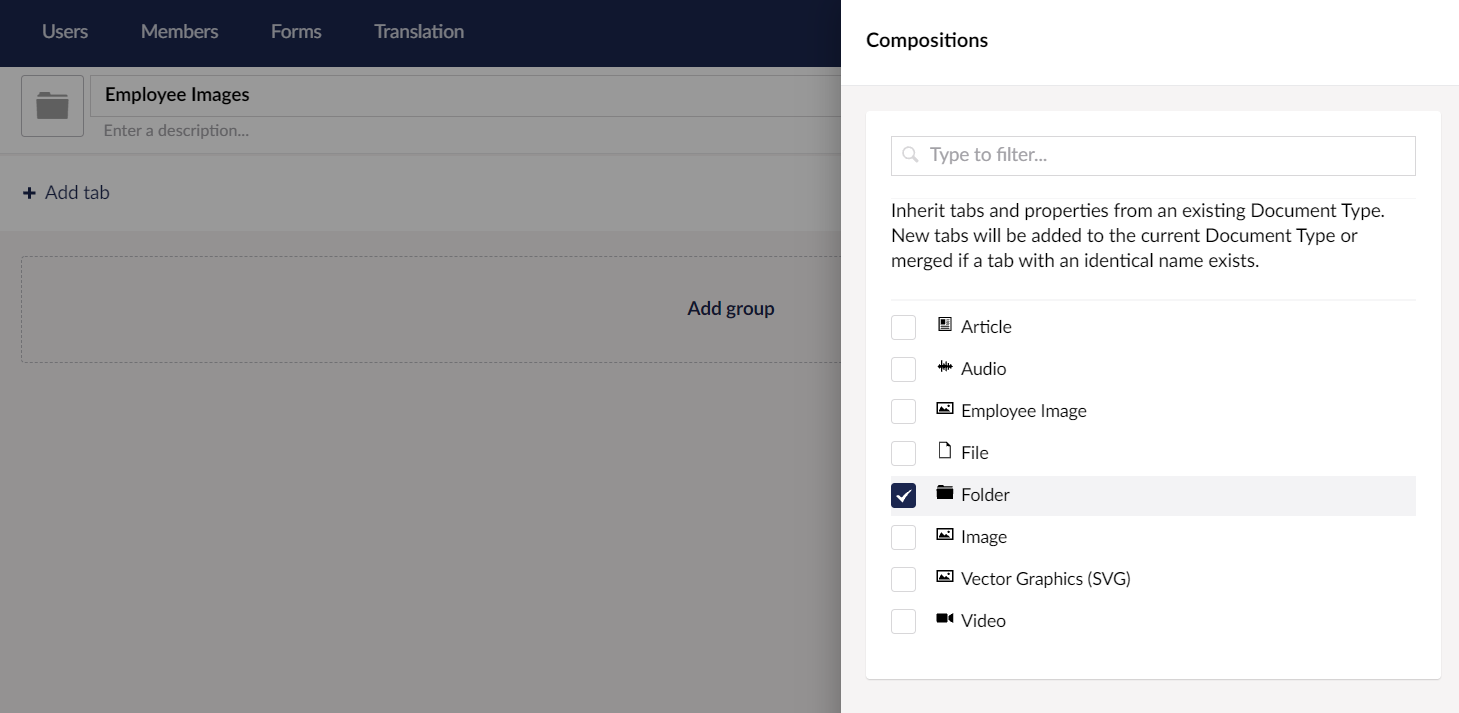

    We want the same basic functionality (same properties and tabs) as the Folder Media type and that can be achieved by clicking Compositions and selecting the Folder Media Type. Now, Employee images will inherit tabs and properties from the Folder Media Type.

    Compositions

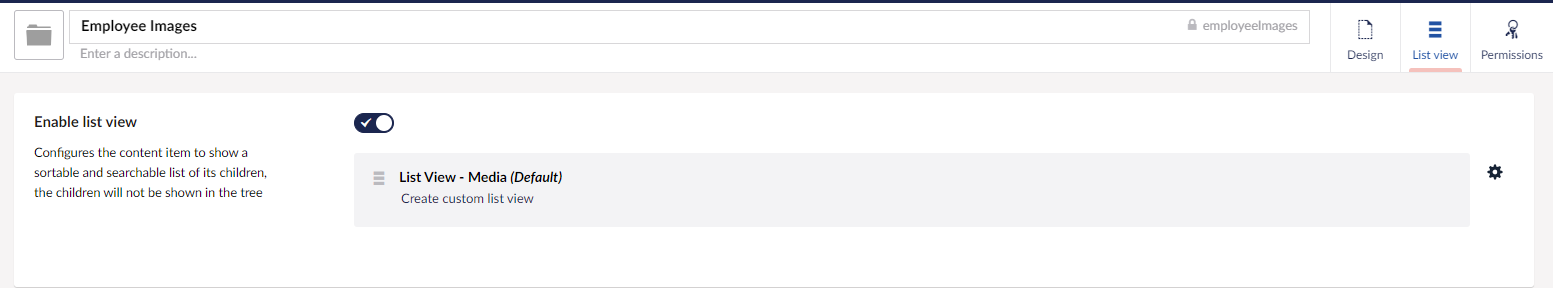

    Switch to a list view by clicking the List view tab and toggle the Enable list view option.

    Enable List View

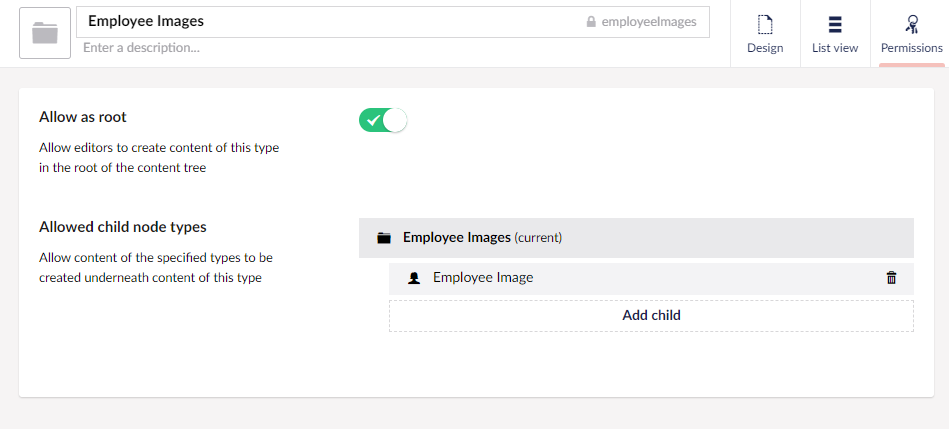

    We need to allow the Employee Image Media Type in our new folder. Go to the Permissions tab. Click Add child under Employee Images and select Employee Image.

    Permissions

    Finally, define where the folder can be created. We want to create the folder in the root of the Media section so select the Allow at root option at the top of the Permission tab.

    Creating the folder and media items

    Go to the Media section and click the menu icon next to Media and select the Employee images folder. Name it "Employee Images" and click Save.

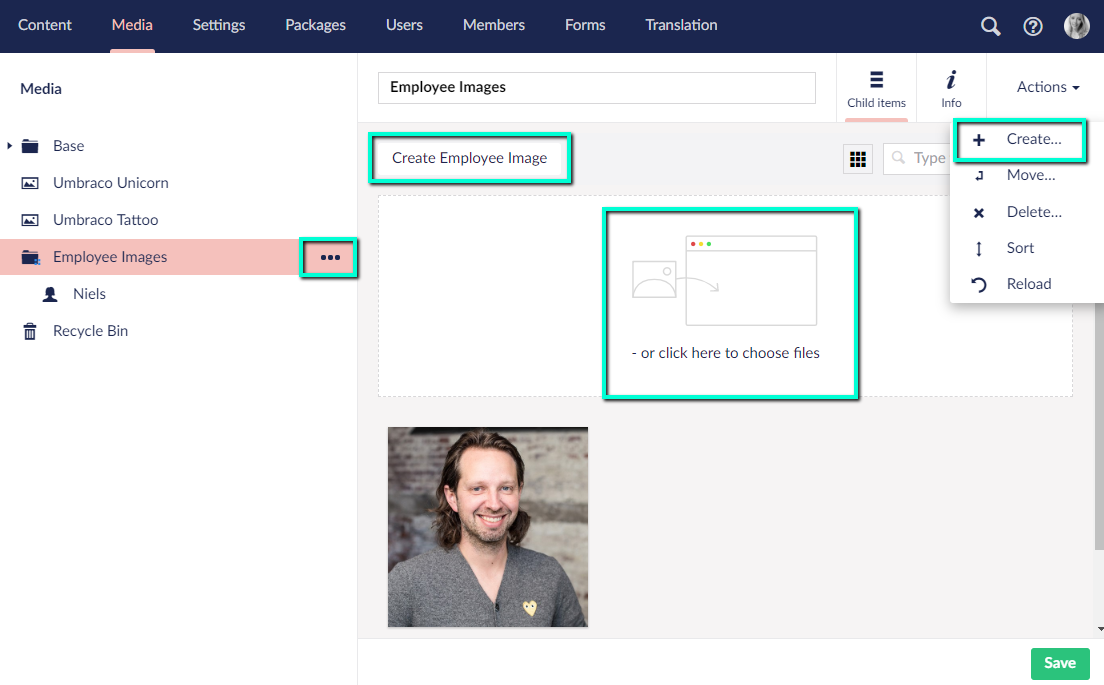

    There are four options to add a new media items to the folder, as you can see here:

    Uploading Media

    Remember you can uncheck the Allow at root option on the Employee images Media Type to prevent editors from creating multiple folders of this type. This will not affect created folders, only disable the creation of new ones.

    Cropping the images

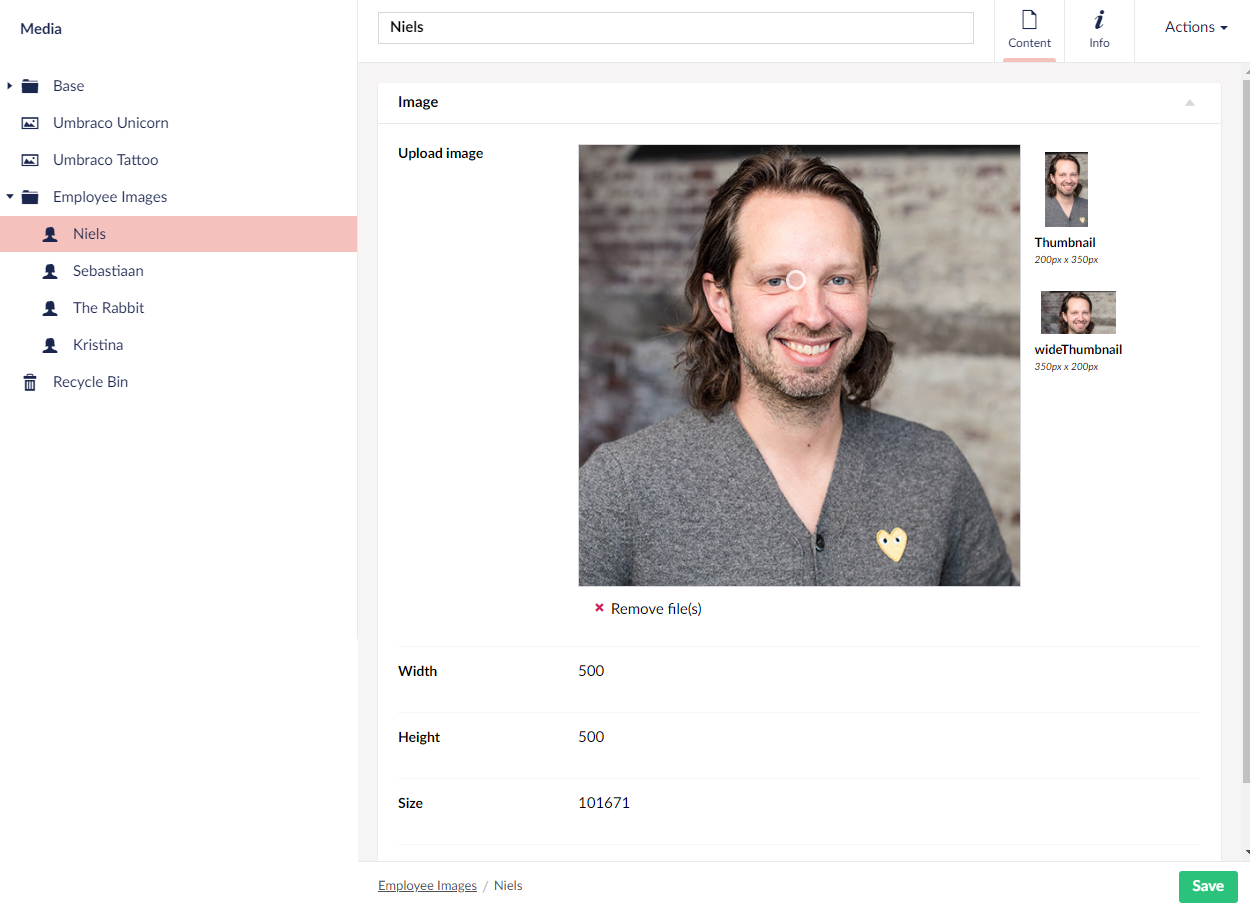

    Cropping images

    If you select an image that has been uploaded to this folder you'll see the full image and the two crops we have defined below. Moving the pink focal point on the on the image will update the crops to focus accordingly. You can also edit the individual crops by selecting them and moving the image or adjust the slider to zoom.
