Custom Views for Block List

    Custom Views are used to overwrite the AngularJS view for the Block List in the Content editor. We can improve the editing experience by overwriting the default representation of our block entries with a custom view that will provide a better view of how the content will look on the frontend.

    Creating the Document Type

    For this tutorial, we will set-up a simple document type and create a new property using Block List as the property editor.

    To create a Document Type:

    1. Go to Settings.

    2. Select the ... next to the Document Types in the Settings tree.

    3. Select Document Type with Template.

      Using folders can help you organize your Document Types.

    4. Enter a Name for the Document Type. Let's call it Product. You'll notice that an Alias is automatically created.

    5. Click Add Group and Enter a Name for the group. Let's call it Product Details.

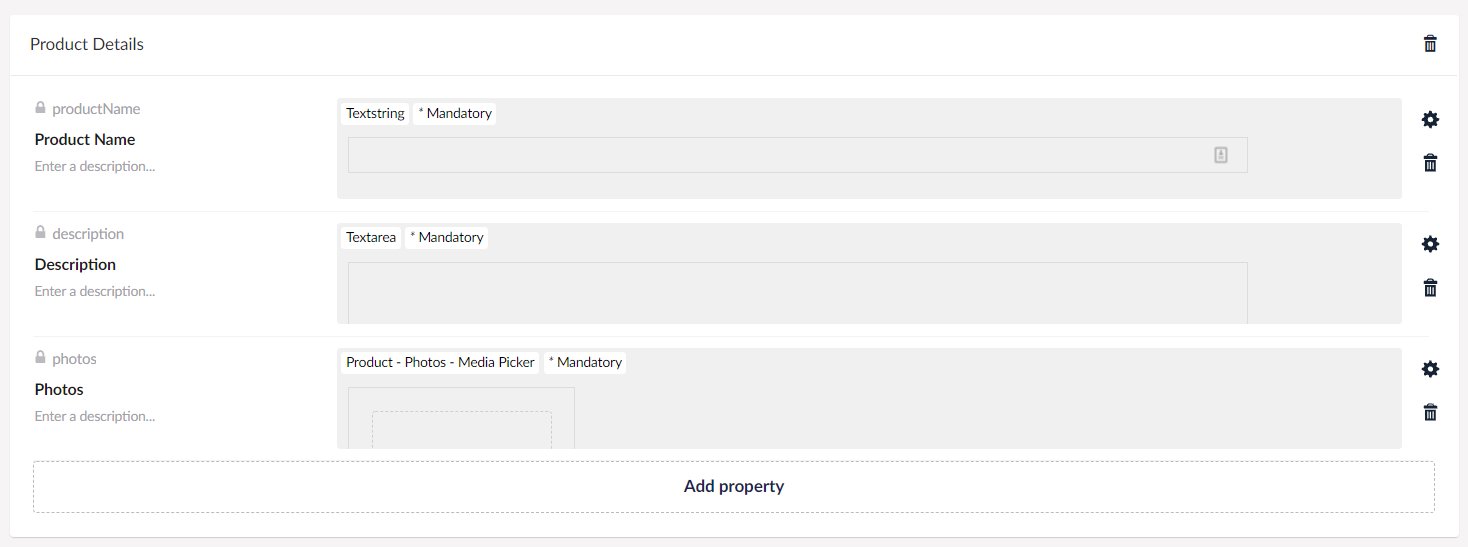

    6. Add the following properties: Document Properties

    7. Add another group called Features and a property with the following specification:

      Name Features
      Alias features
      Data Type Block List

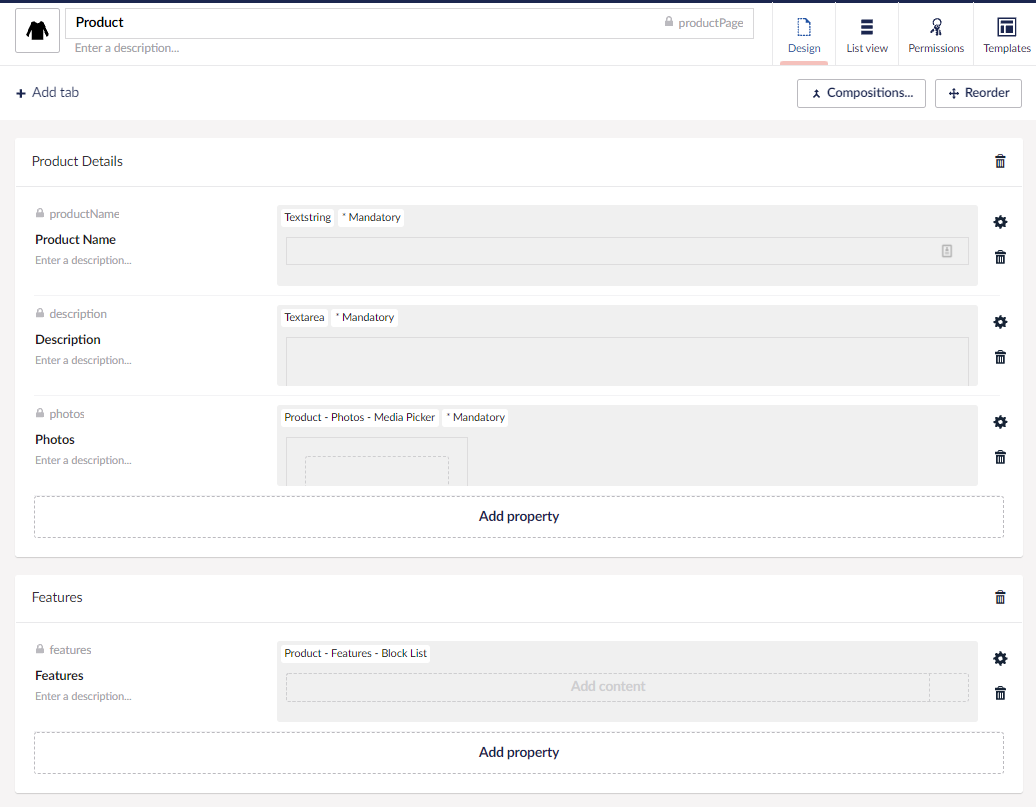

    8. Click Save. Your document type should look like: Document Type

    Creating the Content Node

    To create the Content Node:

    1. Go to the Permissions tab and select Add Child in the Allowed child node types. The Choose Child Node window appears.
    2. Select the Product document type and click Save.
    3. Go to Content.
    4. Select ... next to Content and select Product.
    5. Enter the Name for the article. We are going to call it Product.
    6. Fill the required details in the Product page and click Save.

    Configuring the Block List Editor

    To configure the Block List editor:

    1. Go to Settings and open the Product document type.

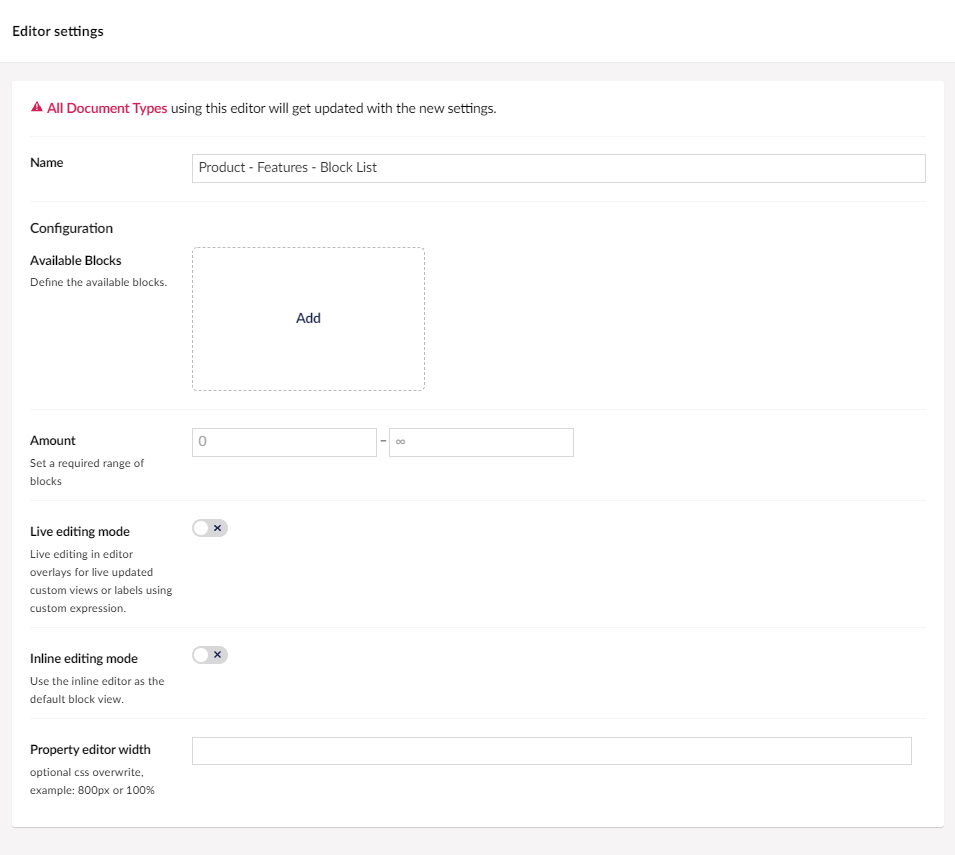

    2. Click on the Block List property we created earlier. You'll see the Block list editor's configuration, as shown below:

      Document Type

    In the Configuration section, we can add Available Blocks, define the range of blocks that can be added, control the live and inline editing mode, or set the property editor width. The Available Blocks in the Block List editor configuration differentiates it from the other property editors. The list you create with the Block List editor is based on one or more blocks. Each block is based on an Element Type.

    To add blocks to our Block List editor:

    1. Click Add in the Available Blocks. The Pick Element Type window opens. From here, you have the option to select an existing Element Type, if any, or you can create a new Element Type from the configuration screen.

    2. For this tutorial, we will Create a new Element Type.

    3. Setup a new Element type called Feature and use the following configuration:

      Property Name Alias Editor
      Name name Textstring
      Details details Textarea
      Image image Media Picker
    4. Click Save and Close. The block configuration window opens. For more information on the block configuration, see the Setup Block Types section.

    5. Similarly, I'll set up another block called Hero.

    6. Toggle Live Editing mode and select Submit.

    Creating Custom Views for blocks

    We can improve the editing experience by overwriting the default representation of our block entries with a custom view that provides a better view of how the content will look on the frontend. Currently, you can only pick HTML files for a custom view. AngularJS powers these views, and therefore you can write any AngularJS logic.

    Let's create a custom.html file with the following configuration:

    <section id="banner" ng-click="block.edit()">
        <div class="content">
            <header>
                <h1>{{block.data.name}}</h1>
            </header>
                <p>{{block.data.details}}</p>
        </div>

    </section>


    Once the HTML file is updated, make sure that you restart your application.

    Assigning the View to the Block

    Now that we have created our view, let's assign it to our block:

    1. Go to Product in the Settings tree.
    2. Click the cog wheel next to Features.
    3. Select the Product - Features - Block List. The Editor Settings window opens.
    4. Select Feature from the Available Blocks configuration. The Configuration of 'Feature' window opens.

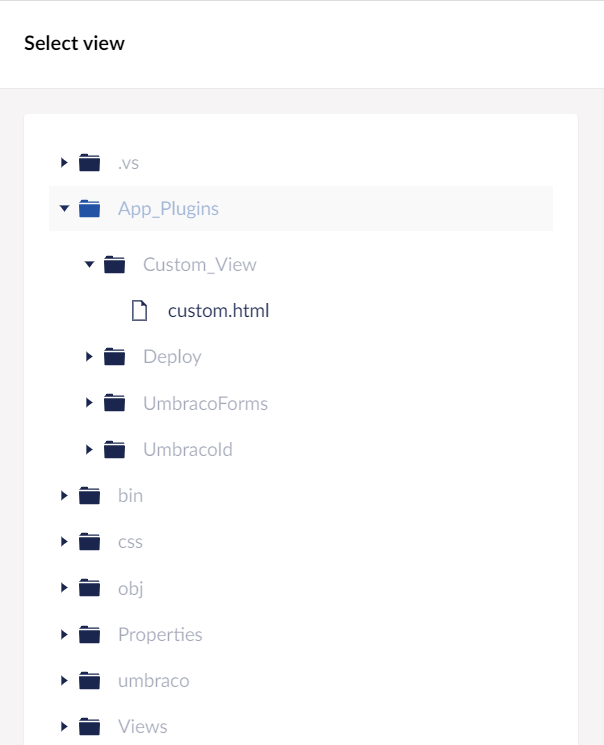

    5. Select Add Custom View in Custom View and browse to the custom.html file. Browse View Location
    6. Click Submit.

    Adding Content to the Blocks

    To add content to the blocks:

    1. Go to the Content section and select Product.
    2. Select Add Content in the Features group. The Add Content displays the blocks we created earlier. Add content to the blocks
    3. Select Feature. The Feature window opens.
    4. Enter the Name and Details in the Feature window. You will notice you can view the content as you type. This is because we have enabled the Live editing mode.

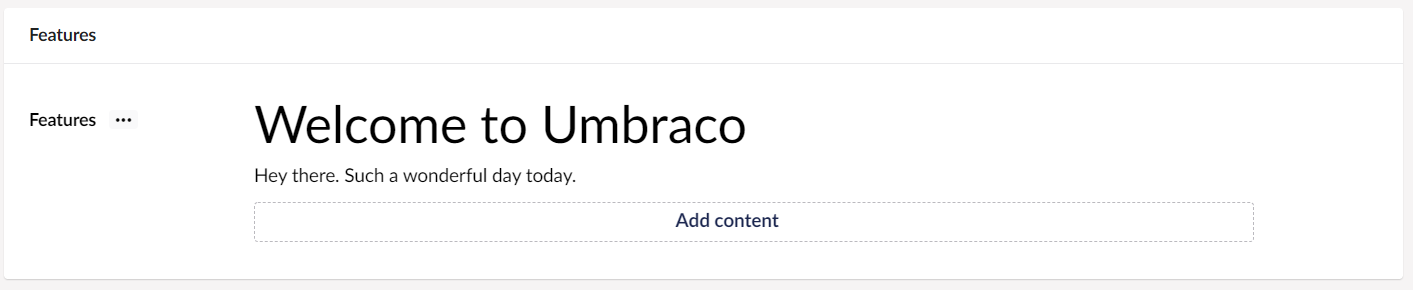

    5. Click Confirm. Feature Content

    Creating Settings section for Blocks

    Now, we have overwritten the AngularJS view for the content editor's block presentation by using our own view. Let's create a Settings section to control the background color and text color of the block. To do this, we need to add a Settings model to our block configuration.

    To add a Settings model:

    1. Go to Product in the Settings tree.
    2. Click the cog wheel next to Features.
    3. Select the Product - Features - Block List. The Editor Settings window opens.
    4. Select Feature from the Available Blocks configuration.
    5. Select Settings Model in the Data Models section. The Attach a settings Element Type window opens.
    6. Select Create new Element Type.
      1. Enter a Name for the element type. Let's say Feature Settings.
      2. Give it an icon.
      3. Click Add Group and Enter a Name. Let's call it Settings.
      4. Click Add Property and Enter a Name. Let's call it Block Theme. An alias blockTheme is generated.
      5. Select Dropdown List as the editor. The Editor Settings window opens.
      6. In the Add prevalue field, add light, dark and medium as values. Prevalue Options
      7. Click Submit.
    7. Click Submit.
    8. Click Save and Close. Feature Settings
    9. Click Submit until you reach the Product document type.
    10. Click Save.

    We need to update the custom.html file with the following configuration:

    <section id="banner" ng-click="api.editBlock(block, block.hideContentInOverlay, index, parentForm)">

        <div class="text-block" ng-class="{'bg-dark': block.settingsData.blockTheme[0] === 'dark', 'bg-light': block.settingsData.blockTheme[0] === 'light', 'bg-medium': block.settingsData.blockTheme[0] === 'medium' }">
            <div class="content">
                <header>
                    <h1>{{block.data.name}}</h1>
                </header>
                    <p>{{block.data.details}}</p>
            </div>
        </div>
    </div>


    Additionally, we need to update our stylesheet to use the color configuration. For this tutorial, I have created a style.css stylesheet with the following styles:

    @import url(https://fonts.googleapis.com/css?family=Montserrat|Source+Sans+Pro:400,700,300,600,600italic,400italic);

    body {
     font-family: 'Source Sans Pro', sans-seif;
    }

    h1{
        font-weight:900;
    }

    .text-block{
        padding:20px;
    }

    .bg-dark {
        background-color: #33ddaa;
        color: #8866aa;
    }

    .bg-light {
        background-color:#b76e79;
        color:#f50407;
    }

    .bg-medium{
        background-color:#2211aa;
        color:#b76e79;
    }

    Assigning the Stylesheet to the Block

    Now that we have updated our view and stylesheet let's assign it to our block.

    1. Go to Product in the Settings tree.
    2. Click the cog wheel next to Features.
    3. Select the Product - Features - Block List. The Editor Settings window opens.
    4. Select Feature from the Availabe Blocks configuration. The Configuration of 'Feature' window opens.
    5. Select Add Stylesheet and browse to style.css. Stylesheet Location
    6. Select Add Settings in the Settings model and select Feature Settings.
    7. Click Submit until you reach the Product document type.
    8. Click Save.

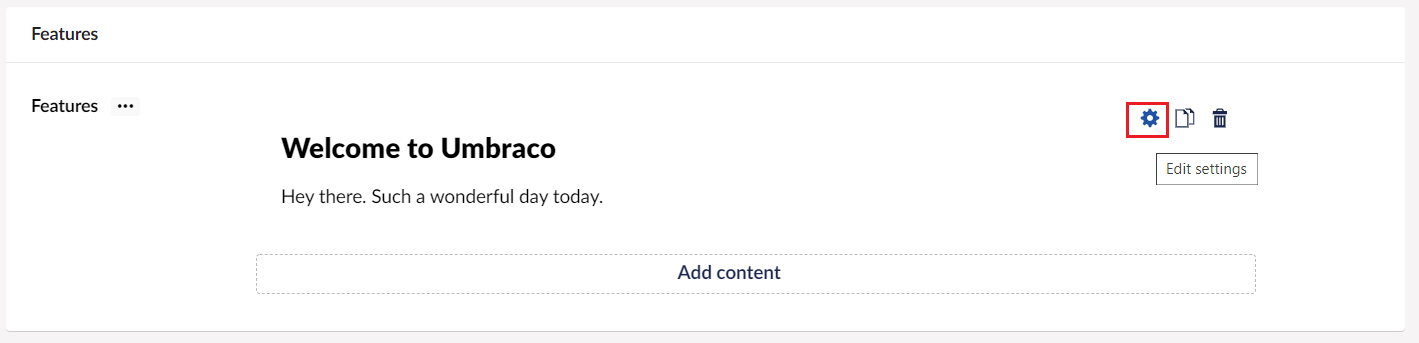

    9. Restart your application. Now, when you head over to the Product page in the Content section and hover over the block you will notice the settings option. Stylesheet Location
    10. Click on Edit Settings and you can see the Block Theme options we created. Feature Options
    11. Select a Theme of your choice and click on Submit to see the changes reflect on your block. Feature Options

    Rendering the Block List Content

    To render the stored value of your Block List editor on the frontend, see the Rendering Block List Content section.
