Working with Rich Text Editor

    The Umbraco Rich Text Editor is an editable field where you, as the editor, can be creative. You select how much you want to do yourself. You can work on text content, format the text, or leave it the way it is.

    If you want to use advanced functionality, you can insert images, create tables, or create links to other pages or documents. The functionality varies depending on how the editor is set up.

    Contact your system administrator for details regarding your editor.

    Editor Buttons

    By default, the following editor styles are available. Your system administrator can determine the styles displayed in different templates. You might have access to more or fewer styles than those shown here.

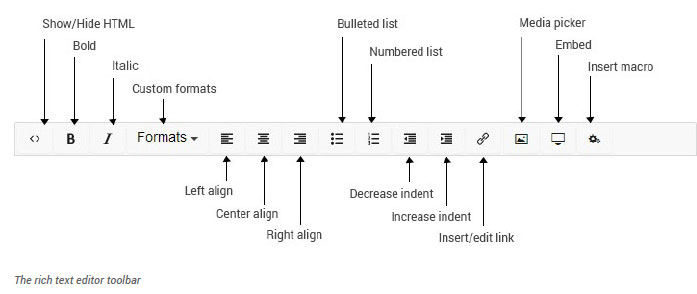

    Editor Bar

    Rich Text Editor Functionality

    The Rich Text Editor provides the following functionalities:

    Paragraph Break/Line Break

    The Rich Text Editor is like any other word processing program. You write the text and the text wraps around when the line reaches the end. Use the following keyboard shortcuts in the editor to add:

    • Space between paragraphs - press ENTER.
    • Line breaks - press SHIFT + ENTER.

    Shortcut Keys

    For ease, there are shortcut keys for certain editor functions. Use the following shortcut keys to carry out certain commands:

    Shortcut Action
    Ctrl + A Select all
    Ctrl + B Bold
    Ctrl + C Copy
    Ctrl + I Italic
    Ctrl + U Underline
    Ctrl + V Paste
    Ctrl + X Cut
    Ctrl + Y Redo
    Ctrl + Z Undo

    Text Formatting

    You do not normally need to spend much time formatting text because Umbraco takes care of the formatting. However, the editor provides a number of options for controlling the text formatting.

    Formatting Buttons

    The most familiar way to control formatting is using the formatting buttons. With these buttons, you can apply basic formatting such as Bold, Italic, aligning text, creating bulleted and numbered lists, and applying indents.

    To apply a format using the formatting buttons:

    1. Select the text you want to apply the formatting to.

    2. Click the format button to apply the formatting you wish to add.

      Formats

    Custom Formats

    An alternate way to apply formatting is using Custom Formats. The Formats drop-down list provides a set of predefined styles that can be applied to text while maintaining a consistent look and feel throughout the site.

    These styles often incorporate more advanced formatting functionality which can be applied to provide a different look for certain elements such as links, headings and sub-heading. For example, you can use a format style to change a link into a call to action button. While the styles available on your site may differ, follow the below process to apply styles:

    1. Select the text you want to apply the style to.
    2. Choose the style to apply from the Format drop-down list.

    Copying Content from Other Programs

    When you write content in another editor to be copied into a rich text editor, you may encounter style issues on your website.

    While pasting content, the original text styles is preserved which can lead to different font faces, sizes, and colours displaying on the website when viewed.

    To prevent formatting issues, we recommended pasting the content first into a markdown editor such as notepad, then copy and paste it into your rich text editor.

    Remove Formatting

    If you have already formatted a paragraph or selection using the formatting buttons, you can remove the formatting rule. To remove formatting:

    1. Select the text you want to remove the style from.
    2. Click the relevant formatting button to remove the formatting rule.

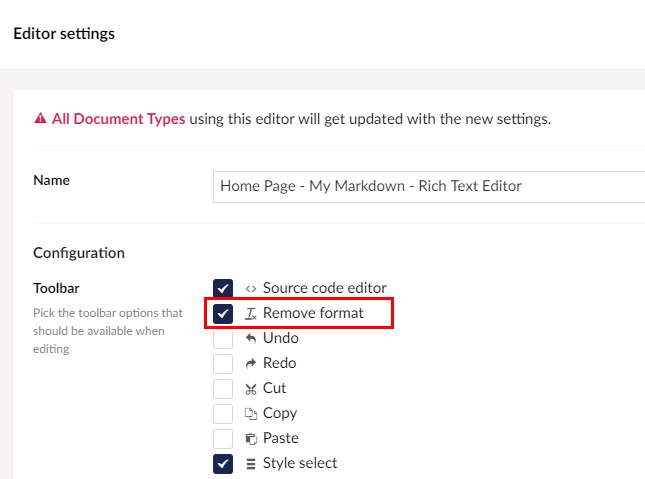

    You can also add a Remove format button in your toolbar. To add the Remove format button:

    1. Navigate to your rich text editor.

    2. Go to the Editor Settings window.

    3. Select Remove format.

      Remove Format

    View Source Code

    View Source Code

    If you are proficient in HTML, you can switch to HTML mode to create your page. You can also check the code and make minor adjustments to get the page exactly as you want it.

    Certain elements such as scripts is not recognized by the HTML view of the rich text editor. You can enter the scripts directly in the text view of the editor.

    Link Button

    The Insert/edit Link button is used to add or update links to internal pages, external pages, media files, email links, and anchors. To insert different types of hyperlinks, follow these steps:

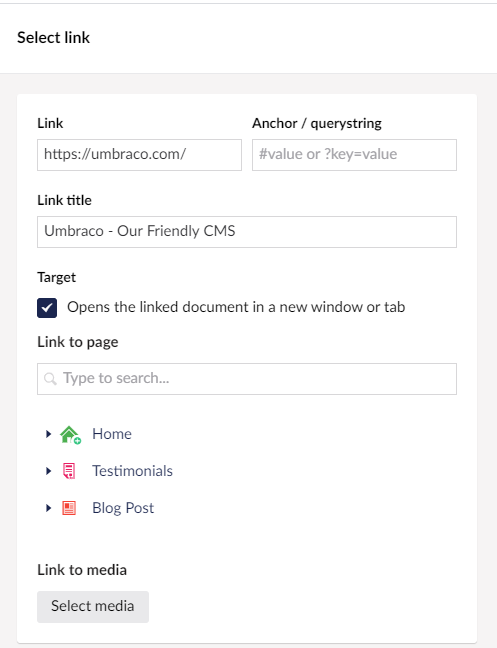

    1. Select the text for the hyperlink.
    2. Click the Insert Link button. The Select Link tree opens on the right-side of the editor.
    3. In the Link field, enter the URL of the web page you wish to link to.
    4. In the Link title field, enter the text that will be shown as a pointer to the link. This is an important information for everyone reading the website with different accessibility aids.
    5. In the Target field, select the checkbox if you want the link to open in a new window or tab.
    6. Click Submit.

    External Link

    1. Select the text for the hyperlink.
    2. Click the Insert Link button. The Select Link tree opens on the right-side of the editor.
    3. Select a page from the Link to page tree. The selection will populate the Link and Link Title fields.
    4. In the Link Title field, enter the text that will be shown as a pointer to the link. By default, the name of the selected page will be populated.
    5. In the Target field, select the checkbox if you want the link to open in a new window or tab.
    6. Click Submit.

    Internal Link

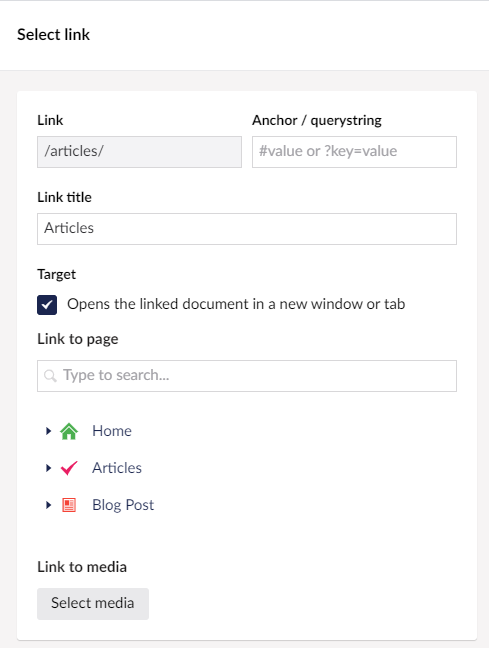

    1. Select the text for the hyperlink.
    2. Click the Insert Link button. The Select Link tree opens on the right-side of the editor.
    3. Select the Select media button. The Select media tree opens where you can select the media item.
    4. Click Select. The selection will populate the Link and Link Title fields.
    5. In the Target field, select the checkbox if you want the link to open in a new window or tab.
    6. Click Submit.

    Link Media

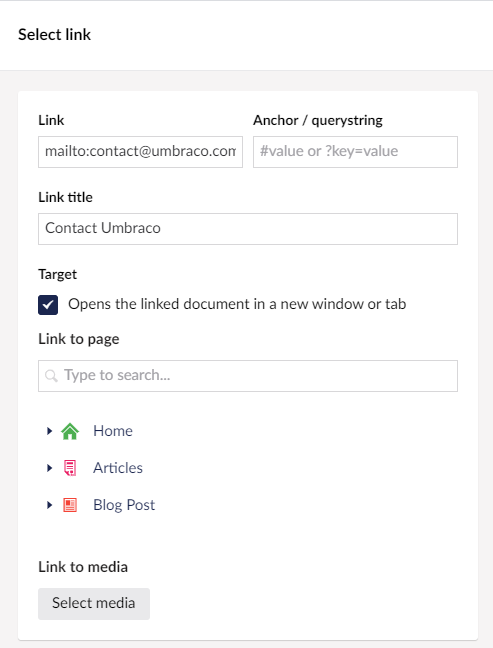

    1. Select the text for the hyperlink.
    2. Click the Insert Link button. The Select Link tree opens on the right-side of the editor.
    3. In the Link field, enter the text mailto: followed by the email address you wish to link (e.g. [email protected]).
    4. In the Link Title field, enter the text that will be shown as a pointer to the link.
    5. In the Target field, select the checkbox if you want the link to open in a new window or tab.
    6. Click Submit.

    Link Email

    An anchor allows you to create internal page links that enable users to navigate within a page. There are two parts to setting up an anchor - the anchor itself and the link to the anchor.

    Creating an anchor

    1. Select the text or place the cursor where you wish to create the anchor.

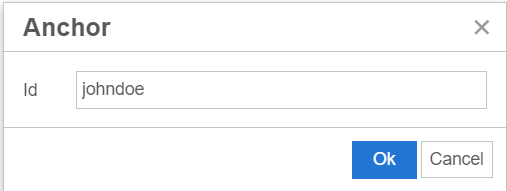

    2. Click the Anchor button. The Create Anchor dialog opens.

      Anchor Button

    3. Enter the anchor name in the ID field. Aoid special characters and do not use spaces.

      Anchor Dialogue

    4. Click OK. You will see a small anchor icon where you previously had the cursor in the editor.

    To delete the anchor:

    1. Select the anchor icon in the editor.
    2. Press the Delete key.

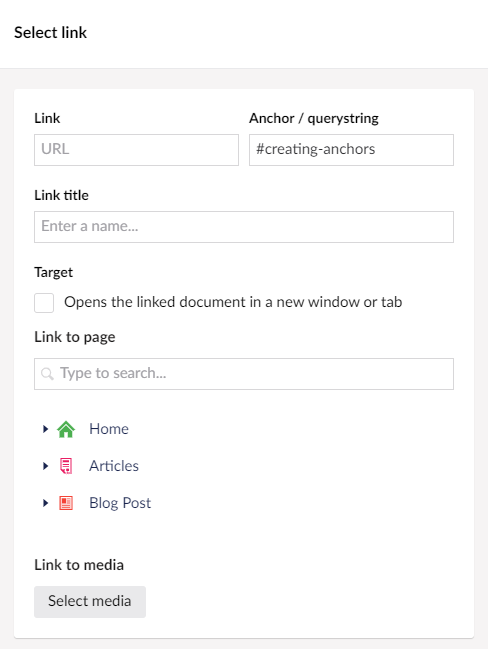

    Linking to an anchor

    1. Select the text where you wish to add the anchor.
    2. Click the Insert link button. The Select Link tree opens on the right-side of the editor.
    3. Add a #symbol followed by the name of your anchor in the anchor/querystring field.
    4. Click Submit.

    Link Anchor

    You can make images into clickable links in Umbraco:

    1. Insert an image into the editor (see Working with Images, for more details).
    2. Select the image to form the hyperlink.
    3. Click the Insert Link button. The Select Link tree opens on the right-side of the editor.
    4. In the Link field, enter the URL of the web page you wish to link to.
    5. In the Link title field, enter the text that will be shown as a pointer to the link.
    6. In the Target field, select the checkbox if you want the link to open in a new window or tab.
    7. Click Submit.

    To remove a link:

    1. Select the link in the editor. For text links, place the cursor anywhere within the link text. For an image, select the image itself.

    2. Click the Remove Link button which removes the hyperlink.

      Unlink

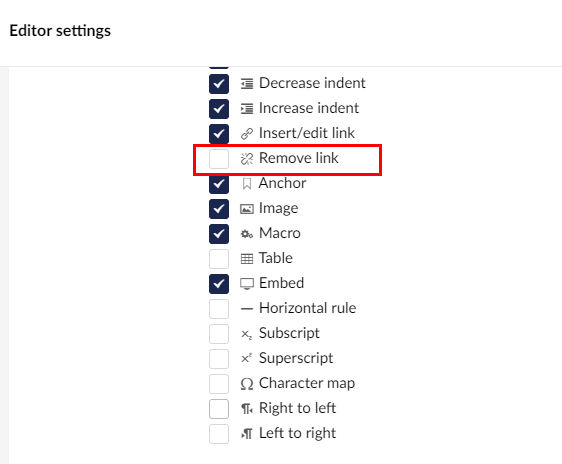

    If the remove link button is not in your richtext editor toolbar, you can add the Remove Link button:

    1. Navigate to your rich text editor.

    2. Go to the Editor Settings window.

    3. Select Remove Link.

      Remove Format

    Alternatively, click the Insert/Edit Link button and manually remove the link from the Link field.

    Working with Images

    To display images on a page the images must be uploaded to your Umbraco media library.

    Many organisations set up a media library containing images that editors can use on their pages. The procedure for uploading an image varies slightly depending on which method your organisation has adopted, so check with your system administrator what is applicable in your organisation.

    Inserting an Image from the Media Library

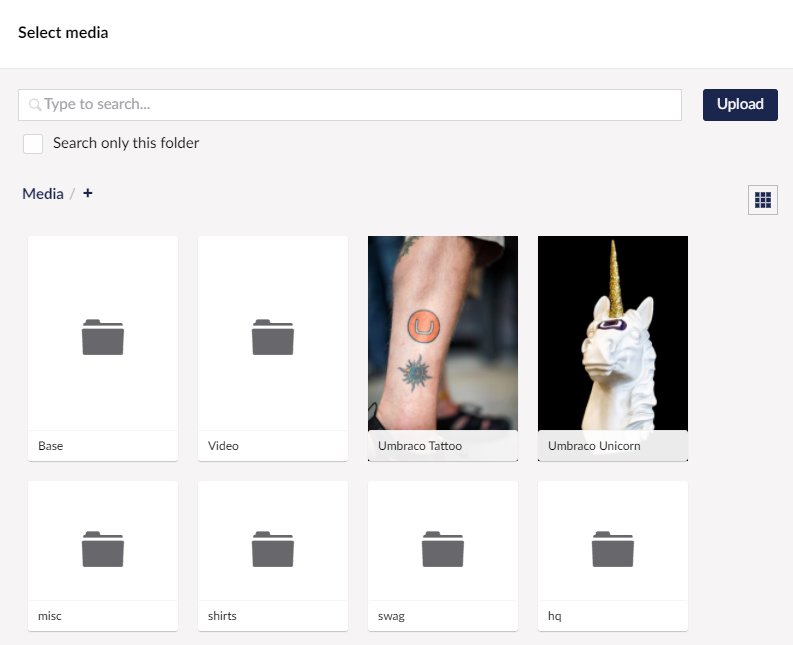

    1. Place the cursor in the editor where you want to insert your image.
    2. Click the Media Picker button on the toolbar. The Select Media tree opens on the right-side of the editor.
    3. Select the folder in which your image is stored.
    4. Click the thumbnail of the image. The Edit selected media tree opens.
    5. Enter an Alternative Text and Caption for your image. Both these fields are optional.
    6. Click Select to add the image.

    Media Picker

    Inserting an Image from your Computer

    You can upload images directly from your local directory in the rich text editor. These images will be stored in the Umbraco media library. Ensure that the image is placed in the correct location within the library.

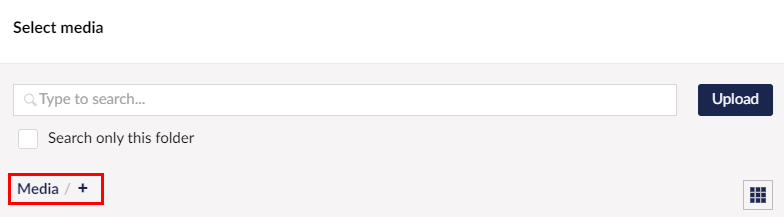

    You can also create folders in the media library by clicking the + icon next to Media/.

    Media Upload

    To insert an image from your computer:

    1. Place the cursor in the editor where you want to insert your image.
    2. Click the Media Picker button. The Select Media tree opens on the right-side of the editor.

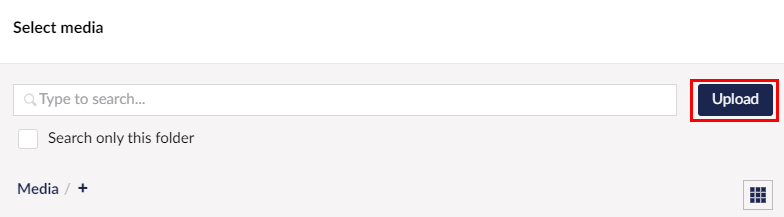

    3. Click the Upload button in the top-right corner of the tree.
    4. Browse to the directory, select the image, and click Open.
    5. Enter an Alternative Text and Caption for your image. Both these fields are optional.
    6. Click Select to add the image.

    Media Upload

    Deleting an Image from the Page

    To delete an image from the page:

    1. Select the image in your editor.
    2. Press Delete on your keyboard. The image is removed from the page, but is not deleted from the Umbraco media library.

    Macros

    In Umbraco, macros are small building blocks of functionality that can be used in an editor. Each macro encompasses a piece of functionality and provides an interface to be able to modify the macro as per your requirements. A macro can be anything from a contact form to an embeddable media player. The advantage of macros is that it gives editors the ability to add complex elements to the page in a less complex manner.

    The macros available to you differ from system to system. Contact your system administrator to find out which macros are available to you and what they do.

    Adding a Macro to the Page

    1. Place the cursor in the editor where you want to insert your macro.

    2. Click the Insert Macro button. The Select Macro tree opens on the right-side of the editor.

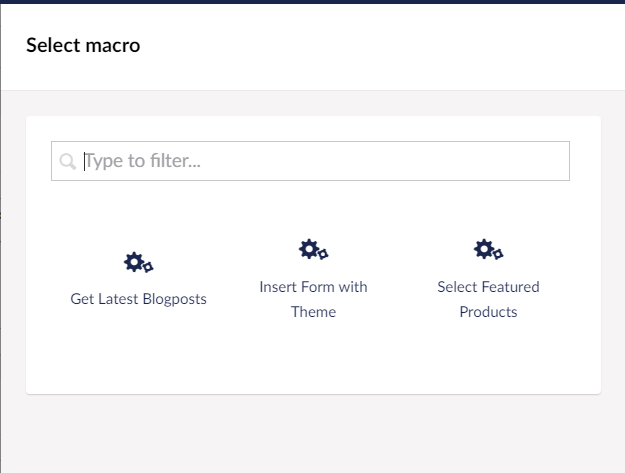

    3. Select a macro to insert or enter the macro name in the Search bar.

      Macro Picker

    4. Configure the macro as required.

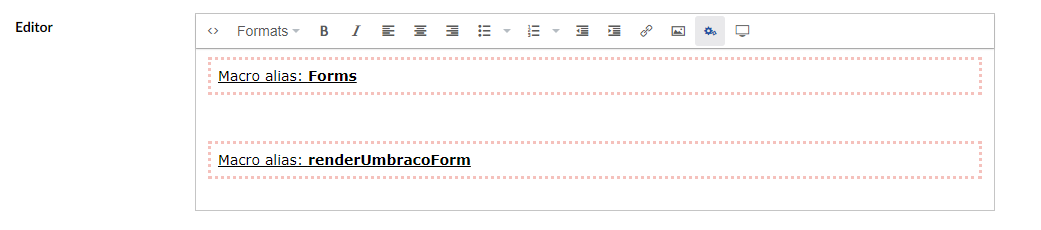

    5. Click Submit to insert the macro. The macro is displayed in the editor with a dotted border.

      Macro Editor

    If there are no macros, you can Create Macros. The above image is an example of macros available when a Starter Kit package is installed.

    Editing macros

    You can edit the macro values after it has been added to the rich text editor:

    1. Highlight the macro in the rich text editor.
    2. Click the Insert Macro button. The Select Macro tree opens on the right-side of the editor.
    3. Here, you can edit the configuration as per your requirement.

    Removing macros

    To remove a macro:

    1. Highlight the macro in the rich text editor.
    2. Press the Delete or Backspace button on your keyboard.

    Tables

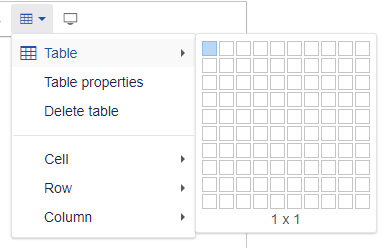

    Tables are used to format information in a grid based structure. When you insert a table, you select how many rows and columns the table should comprise of, as well as fill in a number of additional optional formatting properties. These values can be altered later, so it is not important to know exactly what your table will look like when you create it.

    Tables

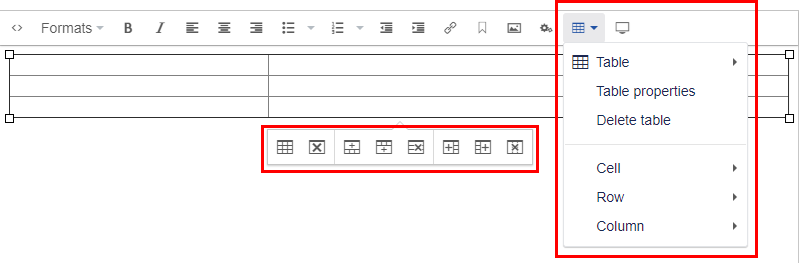

    Editing an Existing Table

    To edit an existing table:

    1. Click on a cell in the table.

    2. A small square box is displayed with some quick actions.

    3. Select the action of your choice. Alternatively, click on the Table button in the rich text editor. There are various other options available for modifying cells, rows and columns such as height, alignment, merge, insert and delete.

      Table Options

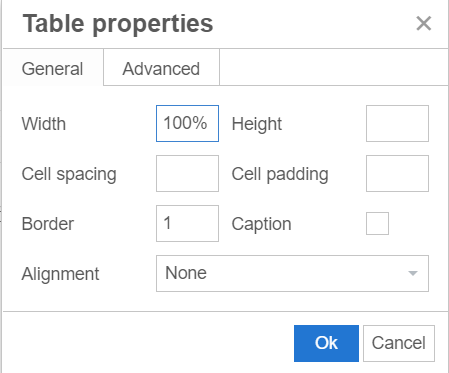

    Table Properties provides several options for modifying the table’s appearance. However the developer of the website may have already created table styles for you so you may not need to adjust these settings.

    Table Properties
