Security

    Umbraco Forms has a backoffice security model integrated with Umbraco users. Details are managed in the Users section of the backoffice, within a tree named Form Security.

    User based permissions

    Within the Form Security tree, each user with a backoffice account is listed. Clicking on a user allows each functional permission to be set:

    • Manage forms - user can create and edit form definitions
    • View entries - user can view the submitted entries
    • Edit entries - user can edit the submitted entries
    • Manage datasources - user can create and edit datasource definitions
    • Manage prevalue sources - user can create and edit prevalue source definitions

    For further control, each form is listed and the user can be granted or denied access to each as appropriate.

    As new forms are created, users will automatically be granted access to them, unless the configuration setting DefaultAccessToNewForms has been set to a value of Deny.

    Start folders

    Umbraco Forms 9, and Umbraco Forms 8 when form definitions are configured for storage in the database, allows for the creation of folders to group forms within. It's also possible to define one or more start folders for a user, in order to limit their access to a sub-set of the forms available.

    If no start folders are selected, the user will be able to access all forms in the backoffice according to their permissions.

    If a single start folder is selected, that will act as the root of the tree view of forms. The user will have access to all folders and forms below that selected folder.

    If more than one start folder is selected, they will appear underneath the root of the tree view of forms. The user will have access to only those folders and their descendent folders and forms.

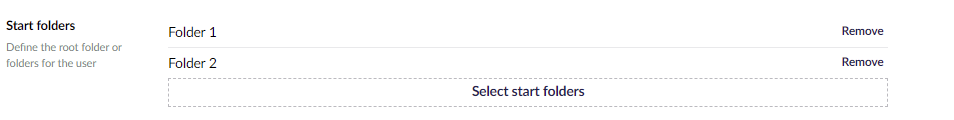

    Start folders

    User group based permissions

    With Umbraco Forms 8.11.0 and 9.3.0, a new model was introduced allowing for the management of permissions at the level of user groups. Particularly for installations with a large number of users, we expect this to be a more useful setup and require less ongoing administration.

    When user groups are involved in permissions, access to a particular resource or feature is determined by the following:

    • If the user has a specific user permission set, it is used in preference to anything set on the user groups they are a part of.
    • If the user doesn't have a specific user permission set, they are granted access if at least one of the user groups they are part of has access.

    To enable the feature, it's necessary to update the ManageSecurityWithUserGroups configuration setting to true.

    With that in place the Form Security tree divides into three sub-trees:

    • Under Group Permissions, each user group is listed and the same settings as described above for individual users can be set here.

    • Under User Permissions, each user that has a specific user permission record is listed and can be managed. Records for users can be created or deleted via the tree's action menu.

    As new forms are created, user groups with aliases listed in the GrantAccessToNewFormsForUserGroups configuration setting will be automatically given access. For example, with a value of admin,editor, the built-in Adminstrators and Editors groups would have access.

    Start folders for user groups

    In Umbraco Forms 8.12.0 and 9.4.0, start folders are also enabled for User Groups. They work in a similar way as the group based permissions described above:

    • If the user has a specific user permission set, it is used in preference to anything set on the user groups they are a part of.
      • This means if the user has no start folders defined and the groups they are part of do, they will have access to the root of the Forms tree and be able to access all folders and Forms.
    • If the user doesn't have a specific user permission set, they are granted access to all the unique folders the groups they are part of have access to.
      • If they are part of any group that has access to the forms section, permission to manage forms and no start folders defined, they will have access to the root of the Forms tree and be able to access all folders and Forms.

    Migrating to user group based permissions

    In introducing the user group based permissions we've taken care to ensure a migration path is available for those existing installations running on older versions of Umbraco Forms. In that situation, we'd recommend the following approach.

    • Upgrate to Umbraco 8.11 or 9.3.
    • At this stage nothing will have changed in terms of the permissions model in use.
    • Set the ManageSecurityWithUserGroups configuration value to true and the GrantAccessToNewFormsForUserGroups as appropriate for your setup.
    • Via the Users > Form Security section, set the required permissions on each user group.
    • Again at this point nothing will have changed with regard the effective permissions for each user, as they will currently all have an existing user permission record.
    • Via Users > Form Security > User permissions, delete the permission records for each user.
    • The effective permissions for each user will now be derived from their user groups.
    • If you have any exceptions - where a particular user needs a particular combination of permissions that you can't or don't want to provide via the user groups - it's always possible to re-create a user permission record that will take precedence over the group based permissions.

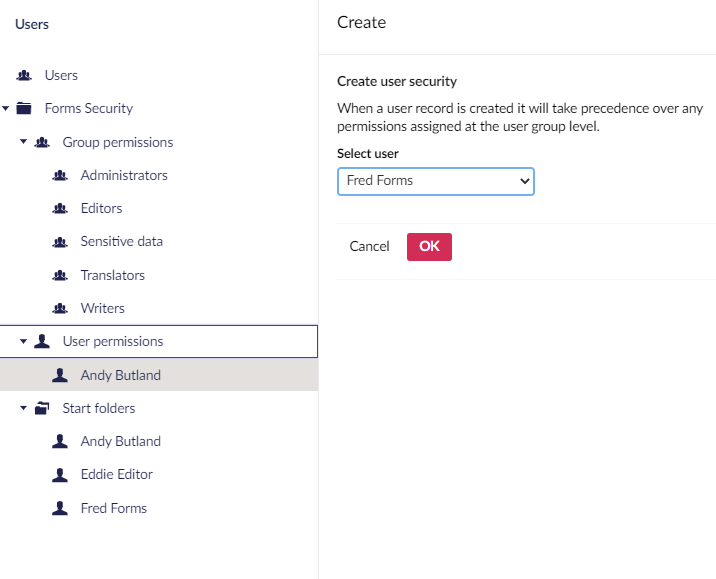

    User group permissions
