    Custom indexing

    This document has been verified for Umbraco 8.

    If you are using Umbraco 9 or later versions, please refer to the note on the Examine documentation landing page for more details.

    Examine has changed a bit in Umbraco 8 (and by "a bit" we mean a lot). In Umbraco 7 everything was configured in the two Examine config files - in Umbraco 8 everything happens through C#.

    Customizing the built in indexes

    You can modify the built-in indexes in the following ways:

    • Events - giving you control over exactly what data goes into them and how the fields are configured
    • Changing the field value types to change how values are stored in the index
    • Changing the IValueSetValidator to change what goes into the index
    • Take control of the entire index creation pipeline to change the implementation

    Changing field value types

    By default, Examine will store values into the Lucene index as "Full Text", meaning it will be indexed and analyzed for a textual search. However, if a value that you are storing in a field is numerical, a date/time, or another specific value type then you might want to change how this is stored in the index. This way you will be able to take advantage of some features such as numerical range or date features, etc...

    There is some documentation about this in the Examine documentation.

    The easiest way to modify how a field is configured is using a custom component, for example:

    using Examine;
using Umbraco.Core;
using Umbraco.Core.Composing;

// register the component
public class CustomizeIndexComposer : ComponentComposer<CustomizeIndexComponent> { }

public class CustomizeIndexComponent : IComponent
{
    private readonly IExamineManager _examineManager;

    public CustomizeIndexComponent(IExamineManager examineManager)
    {
        _examineManager = examineManager;
    }

    public void Initialize()
    {
        // get the external index
        if (!_examineManager.TryGetIndex(UmbracoIndexes.ExternalIndexName, out IIndex index))
            return;

        // add a custom field type
        index.FieldDefinitionCollection.TryAdd(new FieldDefinition("price", FieldDefinitionTypes.Double));

        // modify an existing field type (not recommended)
        index.FieldDefinitionCollection.AddOrUpdate(new FieldDefinition("parentID", FieldDefinitionTypes.FullText));
    }

    public void Terminate()
    {
    }
}

    Changing IValueSetValidator

    An IValueSetValidator is responsible for validating a ValueSet to see if it should be included in the index and/or filtering the data in the ValueSet. For example, by default the validation process for the ExternalIndex checks if a ValueSet has a category type of either "media" or "content" (not member). If a ValueSet was passed to the ExternalIndex and it did not pass this requirement it would be ignored.

    Starting in Umbraco 8.4.0, the IValueSetValidator implementation for the built-in indexes, can be changed like this:

    using Examine;
using Umbraco.Core;
using Umbraco.Core.Composing;
using Umbraco.Core.Services;
using Umbraco.Examine;

public class CustomizeIndexComposer : IUserComposer
{
    public void Compose(Composition composition)
    {
        // replace the default IUmbracoIndexConfig definition
        composition.RegisterUnique<IUmbracoIndexConfig, CustomIndexConfig>();
    }
}

// inherit from the default
public class CustomIndexConfig : UmbracoIndexConfig, IUmbracoIndexConfig
{
    public CustomIndexConfig(IPublicAccessService publicAccessService) : base(publicAccessService)
    {
    }

    // explicit implementation - overrides base class.
    // GetMemberValueSetValidator is used for the MemberIndex.
    IValueSetValidator IUmbracoIndexConfig.GetMemberValueSetValidator()
    {
        // NOTE - by default Umbraco only includes a small subset of fields for the member index for
        // security reasons, however you may want to include a larger set of data in the member index.
        // This example will include all data for a member excluding the built in property values.

        // all built in member properties to exclude (i.e. Password question, etc...)
        var excludeFields = Constants.Conventions.Member.GetStandardPropertyTypeStubs().Keys;

        // include everything except the above
        return new MemberValueSetValidator(null, null, null, excludeFields);
    }
}

    If you are using a version of Umbraco before 8.4.0 then to do this you will need to modify the index creation (see below).

    Overriding index creation

    You can take control of the whole Umbraco index creation logic by replacing the default implementation of IUmbracoIndexesCreator.

    A few examples of why you might want to override the index creation:

    • To customize the default analyzer used in the built in indexes
    • Change the IValueSetValidator
    • Modify field definitions
    • Change the location of where the indexes are stored, or
    • Replace the indexes with your own entirely custom implementation

    As an example, to change the IValueSetValidator for the MemberIndex in the above example:

    using Examine;
using Umbraco.Core;
using Umbraco.Core.Composing;
using Umbraco.Core.Logging;
using Umbraco.Core.Services;
using Umbraco.Examine;
using Umbraco.Web.Search;

public class CustomizeIndexComposer : IUserComposer
{
    public void Compose(Composition composition)
    {
        // replace the default IUmbracoIndexesCreator definition
        composition.RegisterUnique<IUmbracoIndexesCreator, CustomUmbracoIndexesCreator>();
    }
}

// override the default creator
public class CustomUmbracoIndexesCreator : UmbracoIndexesCreator
{
    public CustomUmbracoIndexesCreator(IProfilingLogger profilingLogger, ILocalizationService languageService, IPublicAccessService publicAccessService, IMemberService memberService, IUmbracoIndexConfig umbracoIndexConfig)
        : base(profilingLogger, languageService, publicAccessService, memberService, umbracoIndexConfig)
    {
    }

    // note - in Umbraco 8.4 this method is obsoleted and it's advised to replace the
    // IUmbracoIndexConfig as in the above example.
    public override IValueSetValidator GetMemberValueSetValidator()
    {
        // all built in member properties to exclude (i.e. Password question, etc...)
        var excludeFields = Constants.Conventions.Member.GetStandardPropertyTypeStubs().Keys;

        // include everything except the above
        return new MemberValueSetValidator(null, null, null, excludeFields);
    }
}

    Another example could be to replace the default Lucene analyzer for the ExternalIndex:

    using System.Collections.Generic;
using Examine;
using Lucene.Net.Analysis;
using Umbraco.Core;
using Umbraco.Core.Logging;
using Umbraco.Core.Services;
using Umbraco.Examine;
using Umbraco.Web.Search;

// override the default creator
public class CustomUmbracoIndexesCreator : UmbracoIndexesCreator
{
    // ctor
    public CustomUmbracoIndexesCreator(IProfilingLogger profilingLogger, ILocalizationService languageService, IPublicAccessService publicAccessService, IMemberService memberService, IUmbracoIndexConfig umbracoIndexConfig)
        : base(profilingLogger, languageService, publicAccessService, memberService, umbracoIndexConfig)
    {
    }

    // override the Create method
    public override IEnumerable<IIndex> Create()
    {
        // create the default index definitions
        var defaultIndexes = base.Create().ToDictionary(x => x.Name, x => x);
        var internalIndex = defaultIndexes[Constants.UmbracoIndexes.InternalIndexName];
        var memberIndex = defaultIndexes[Constants.UmbracoIndexes.MembersIndexName];

        // create a custom external index
        var externalIndex = CreateExternalIndex();

        // return the Umbraco indexes - all 3 must be here with the correct names!
        return new IIndex[]
        {
            internalIndex,
            externalIndex,
            memberIndex
        };
    }

    private IIndex CreateExternalIndex()
    {
        var index = new UmbracoContentIndex(
            Constants.UmbracoIndexes.ExternalIndexName, // default
            CreateFileSystemLuceneDirectory(Constants.UmbracoIndexes.ExternalIndexPath), // default
            new UmbracoFieldDefinitionCollection(), // default

            // change the default analyzer from StandardAnalyzer
            new WhitespaceAnalyzer(),

            ProfilingLogger, // default
            LanguageService, // default
            UmbracoIndexConfig.GetPublishedContentValueSetValidator()); // default

        return index;
    }
}

    Index based on document types

    The following example will show how to create an index that will only include nodes based on the document type product.

    We always recommend that you use the existing built-in ExternalIndex. You should then query based on the NodeTypeAlias instead of creating a new separate index based on that particular node type. However, should the need arise, the example below will show you how to do it.

    Take a look at our Examine Quick Start to see some examples of how to search the ExternalIndex.

    To create this index we need three things:

    1. An IndexCreator to create a definition for the configuration of the index(s)
    2. A Component to register the created index(s) with Examine
    3. A Composer to append this Component to the list of Components Umbraco initializes during start-up and to register our IndexCreator service with the underlying dependency injection framework, so it can be injected into our Component constructor.

    (Read more about using Composition and Components to modify Umbraco's default behaviour and Registering dependencies with Umbraco's underlying IoC framework).

    ProductIndexCreator

    using System.Collections.Generic;
using Examine;
using Lucene.Net.Analysis.Standard;
using Lucene.Net.Util;
using Umbraco.Core.Logging;
using Umbraco.Core.Services;
using Umbraco.Examine;
using Umbraco.Web.Search;

public class ProductIndexCreator : LuceneIndexCreator, IUmbracoIndexesCreator
{
    private readonly IProfilingLogger _profilingLogger;
    private readonly ILocalizationService _localizationService;
    private readonly IPublicAccessService _publicAccessService;
    private readonly IScopeProvider _scopeProvider;

    // Since Umbraco 8 has dependency injection out of the box, we can use it to inject
    // the different services that we need.
    public ProductIndexCreator(IProfilingLogger profilingLogger,
        ILocalizationService localizationService,
        IPublicAccessService publicAccessService,
        IScopeProvider scopeProvider
    )
    {
        _profilingLogger = profilingLogger;
        _localizationService = localizationService;
        _publicAccessService = publicAccessService;
        _scopeProvider = scopeProvider;
    }

        // Noticed that we return a collection of indexes? Technically you
        // can create multiple indexes in an indexCreator :) You can have a look at
        // UmbracoIndexesCreator.cs in the CMS core and see how the CMS does that.
        public override IEnumerable<IIndex> Create()
        {
            var index = new UmbracoContentIndex("ProductIndex",
                CreateFileSystemLuceneDirectory("ProductIndex"),
                new UmbracoFieldDefinitionCollection(),
                new StandardAnalyzer(Version.LUCENE_30),
                _profilingLogger,
                _localizationService,
                // We can use the ContentValueSetValidator to set up rules for the content we
                // want to have indexed. In our case we want published, non-protected nodes of the type "product".
                new ContentValueSetValidator(true, false, _publicAccessService, _scopeProvider, includeItemTypes: new string[] { "product" }));

            return new[] { index };
        }
}

    You can create an IValueSetBuilder implementation that builds the value sets .

    ProductIndexValueSetBuilder

    using System.Collections.Generic;
using Examine;
using Umbraco.Cms.Core.Models;
using Umbraco.Cms.Infrastructure.Examine;

namespace Umbraco.Docs.Samples.Web.CustomIndexing
{
    public class ProductIndexValueSetBuilder : IValueSetBuilder<IContent>
    {
        public IEnumerable<ValueSet> GetValueSets(params IContent[] contents)
        {
            foreach (var content in contents)
            {
                var indexValues = new Dictionary<string, object>
                {
                    ["name"] = content.Name,
                    ["id"] = content.Id,
                };

                yield return new ValueSet(content.Id.ToString(), "content", indexValues);
            }
        }
    }
}

    You can also create an IndexPopulator implementation that populates the index with the value sets.

    ProductIndexPopulator

    using System;
using System.Collections.Generic;
using System.Linq;
using Examine;
using Umbraco.Cms.Core.Services;
using Umbraco.Cms.Infrastructure.Examine;

namespace Umbraco.Docs.Samples.Web.CustomIndexing
{
    public class ProductIndexPopulator : IndexPopulator
    {
        private readonly IContentService _contentService;
        private readonly ProductIndexValueSetBuilder _productIndexValueSetBuilder;

        public ProductIndexPopulator(IContentService contentService, ProductIndexValueSetBuilder productIndexValueSetBuilder)
        {
            _contentService = contentService;
            _productIndexValueSetBuilder = productIndexValueSetBuilder;
            RegisterIndex("ProductIndex");
        }
        protected override void PopulateIndexes(IReadOnlyList<IIndex> indexes)
        {
            foreach (var index in indexes)
            {
                var roots = _contentService.GetRootContent();

                index.IndexItems(_productIndexValueSetBuilder.GetValueSets(roots.ToArray()));

                foreach (var root in roots)
                {
                    var valueSets = _productIndexValueSetBuilder.GetValueSets(_contentService.GetPagedDescendants(root.Id, 0, Int32.MaxValue, out _).ToArray());
                    index.IndexItems(valueSets);
                }
            }

        }
    }
}

    ProductComponent

    using Examine;
using Umbraco.Core.Composing;

public class ProductComponent : IComponent
{
    private readonly IExamineManager _examineManager;
    private readonly ProductIndexCreator _productIndexCreator;

    public ProductComponent(IExamineManager examineManager, ProductIndexCreator productIndexCreator)
    {
        _examineManager = examineManager;
        _productIndexCreator = productIndexCreator;
    }

    public void Initialize()
    {
        // Because the Create method returns a collection of indexes,
        // we have to loop through them.
        foreach (var index in _productIndexCreator.Create())
        {
            _examineManager.AddIndex(index);
        }
    }

    public void Terminate() { }
}

    ProductComposer

    using Umbraco.Core;
using Umbraco.Core.Composing;

public class ProductComposer : IUserComposer
{
    public void Compose(Composition composition)
    {
        composition.Components().Append<ProductComponent>();
        composition.RegisterUnique<ProductIndexCreator>();

        //example of registering an IValueSetBuilder implementation
        composition.RegisterUnique<ProductIndexValueSetBuilder>();

        //example of registering an IIndexPopulator implementation
        composition.Register<ProductIndexPopulator>(Lifetime.Singleton);
    }
}

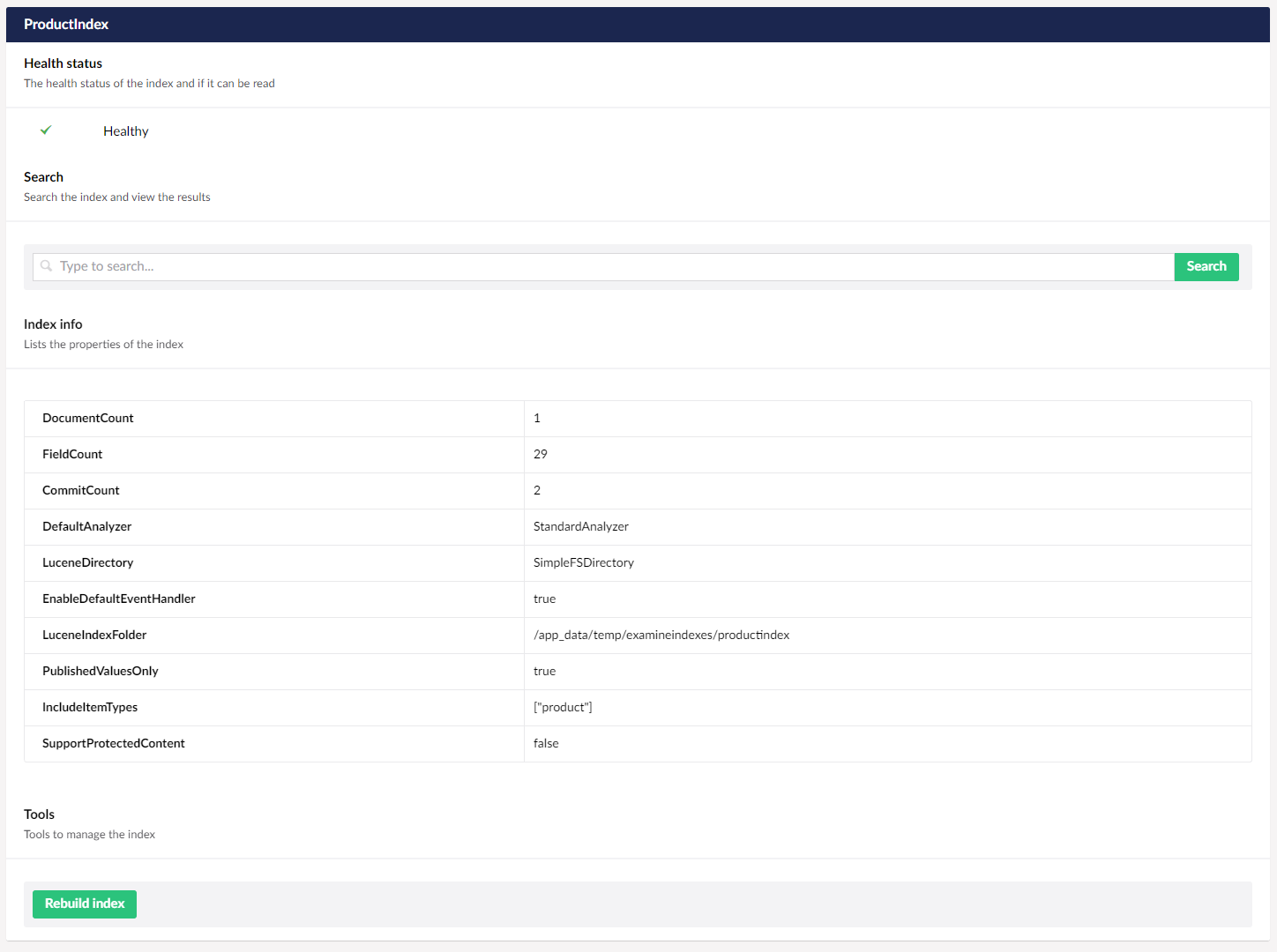

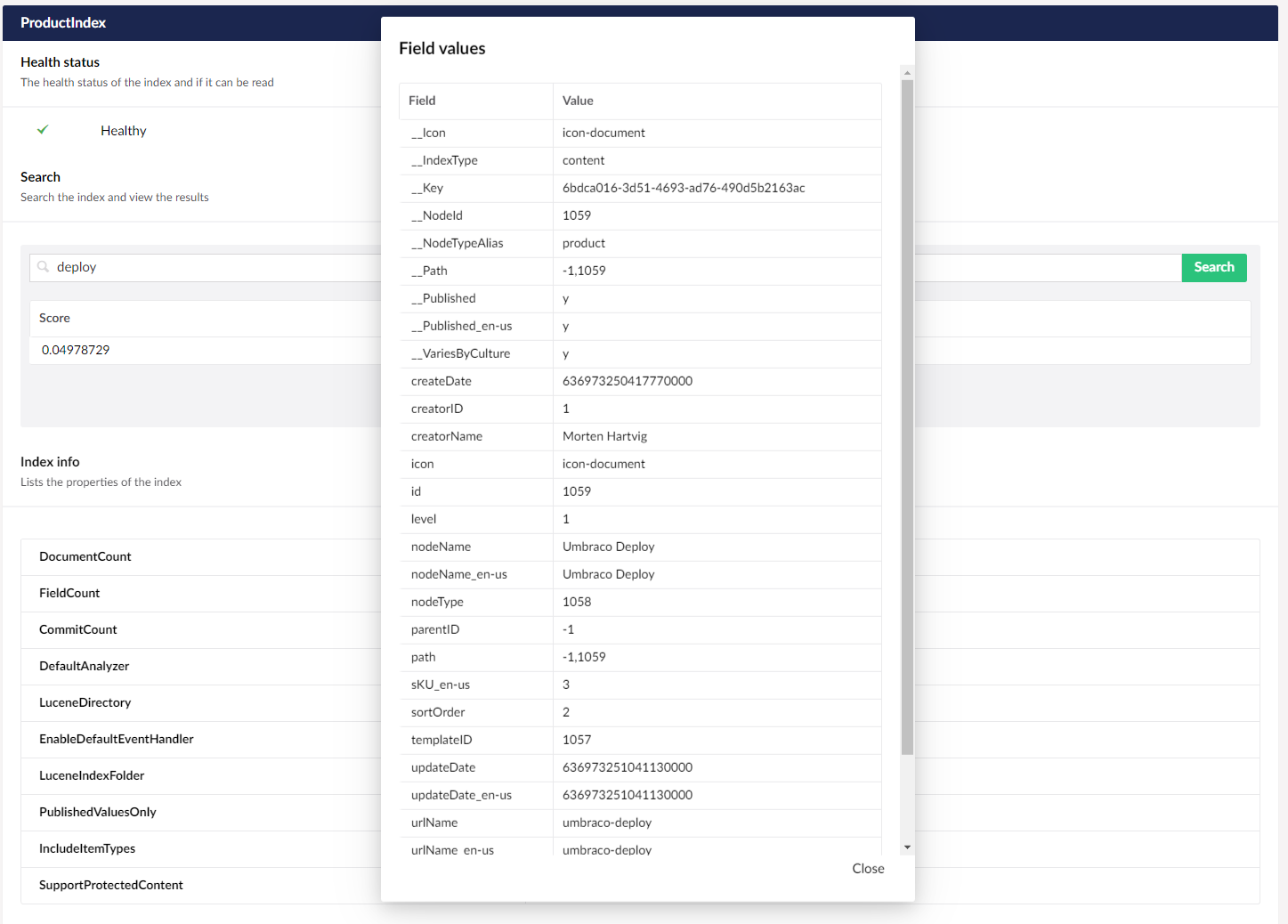

    Result

    Custom product index

    Product document
