Tutorial - Creating a Custom Dashboard

Overview

This guide takes you through the steps to setup a Custom Dashboard in Umbraco.

What is a Dashboard?

A Dashboard is a tab on the right-hand side of a section eg. the Getting Started dashboard in the Content section:

Welcome dashboard

Why provide a Custom Dashboard for your editors?

It is generally considered good practice when you build an Umbraco site to provide a custom dashboard to welcome your editors and provide information about the site and/or provide a helpful gateway to common functionality the editors will use. This guide will show the basics of creating a custom 'Welcome Message' dashboard and then show how you can go a little further to provide interaction using AngularJS.

The finished dashboard will give the editors an overview of which pages and media files they've worked on most recently.

Here's an overview of the steps that will be covered:

Setting up the dashboard plugin
Writing a basic Welcome Message view
Configure the Custom Welcome Dashboard to be displayed
Adding translations
Adding styles
Adding an AngularJS controller
Display the current user's name in our welcome message
Display the current user's recent updates

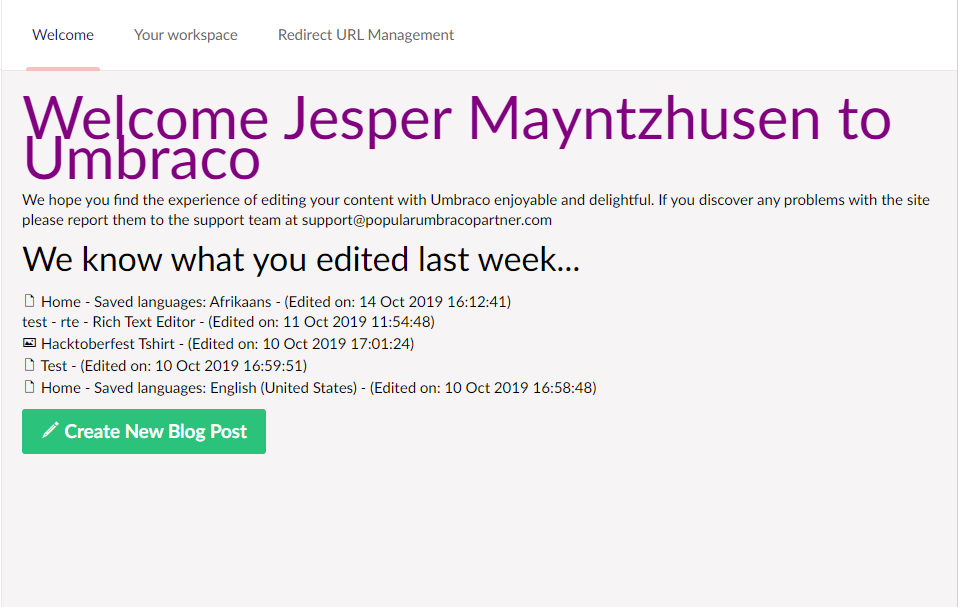

Create a shortcut button to add a new blog post
You can do anything...

Prerequisites

This tutorial uses AngularJS with Umbraco, so it does not cover AngularJS itself, there are tons of resources on that already here:

There are a lot of parallels with Creating a Property Editor, the tutorial 'Creating a Property Editor Tutorial' is very much worth a read through too.

The end result

At the end of this guide, we should have a friendly welcoming dashboard displaying a list of the editor's recent site updates.

Setting up a plugin

The first thing we must do is create a new folder inside our site's '/App_Plugins' folder. We will call it 'CustomWelcomeDashboard'

Creating the dashboard view

Next, we will create a HTML file inside this folder called 'WelcomeDashboard.html'. The html file will contain a fragment of a html document and does not need <html><head><body> entities.

Add the following html to the WelcomeDashboard.html

<div class="welcome-dashboard">
    <h1>Welcome to Umbraco</h1>
    <p>We hope you find the experience of editing your content with Umbraco enjoyable and delightful. If you discover any problems with the site please report them to the support team at <a href="mailto:">[email protected]</a></p>
    <p>You can put anything here...</p>
</div>

Configuring the dashboard to appear

Similar to a property editor you will now register the dashboard in a package.manifest file, so add a new file inside the ~/App_Plugins/CustomWelcomeDashboard folder called package.manifest:

{
    "dashboards":  [
        {
            "alias": "welcomeDashboard",
            "view":  "/App_Plugins/CustomWelcomeDashboard/WelcomeDashboard.html",
            "sections":  [ "content" ],
            "weight": -10,
            "access": [
                { "deny": "translator" },
                { "grant": "admin" }
            ]
        }
    ]
}

The above configuration is effectively saying:

"Add a tab called 'WelcomeDashboard' to the 'Content' section of the Umbraco site, use the WelcomeDashboard.html as the content (view) of the dashboard and don't allow 'translators', but do allow 'admins' to see it!"

The order in which the tab will appear in the Umbraco Backoffice depends on its weight. To make our Custom Welcome message the first Tab the editors see in the content section, make sure the weight is less than the default dashboards, read more about the default weights.

You can specify multiple controls to appear on a particular tab, and multiple tabs in a particular section.

Add Language Keys

After registering your dashboard, it will appear in the backoffice - however it will have it's dashboard alias [WelcomeDashboard] wrapped in square brackets. This is because it is missing a language key. The language key allows people to provide a translation of the dashboard name in multilingual environments. To remove the square brackets - add a language key:

You will need to create a Lang folder in your custom dashboard folder and create a package specific language file: ~/App_Plugins/CustomWelcomeDashboard/Lang/en-US.xml

The App_Plugins version of the Lang directory is case sensitive on Linux systems, so make sure that it start with a capital L.

<?xml version="1.0" encoding="utf-8" standalone="yes"?>
<language>
  <area alias="dashboardTabs">
    <key alias="welcomeDashboard">Welcome</key>
  </area>
</language>

The Result

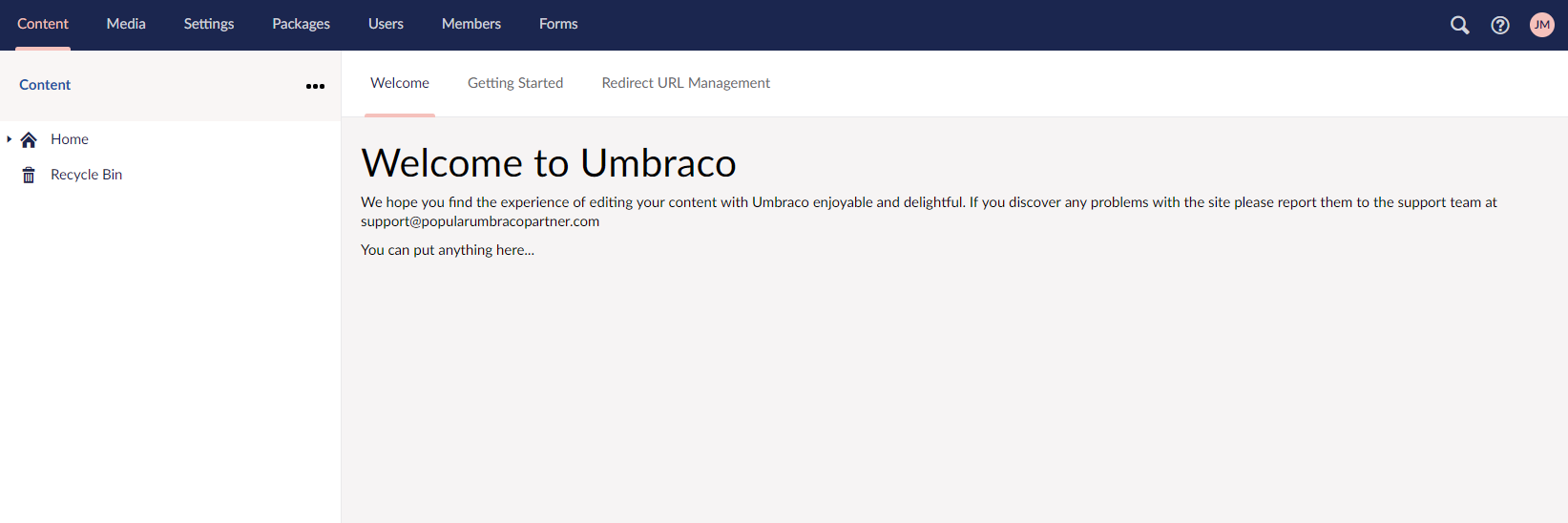

Custom Dashboard Welcome Message

We can apply the same workflow to elements inside the dashboard, not only the name/alias. Extend the translation file xml like so:

<?xml version="1.0" encoding="utf-8" standalone="yes"?>
<language>
	<area alias="dashboardTabs">
		<key alias="welcomeDashboard">Welcome</key>
	</area>
	<area alias="welcomeDashboard">
		<key alias="heading">Welcome!</key>
		<key alias="bodytext">This is the Backoffice. From here, you can modify the content, media, and settings of your website.<key>
		<key alias="copyright">© Sample Company 20XX</key>
	</area>
</language>

We are adding another area tag with a few keys. Let us adjust the dashboard HTML accordingly:

<div class="welcome-dashboard">
    <h1><localize key="welcomeDashboard_heading">Default heading</localize></h1>
    <p><localize key="welcomeDashboard_bodytext">Default bodytext</localize></p>
    <p><localize key="welcomeDashboard_copyright">Default copyright</localize></p>
</div>

The localize tag will be replaced with the translated keywords. In the above example, we have some default text inside those tags, which might as well be removed - it would usually not be visible after the translation is applied.

As for the localize tag syntax in HTML, the area alias is combined with the key alias - so if you want to translate:

<localize key="welcomeDashboard_heading">Default heading</localize>

The xml for that specific key will look like this:

	<area alias="welcomeDashboard">
		<key alias="heading">Welcome!</key>
	</area>

The area and key aliases are combined and an underscore is added inbetween.

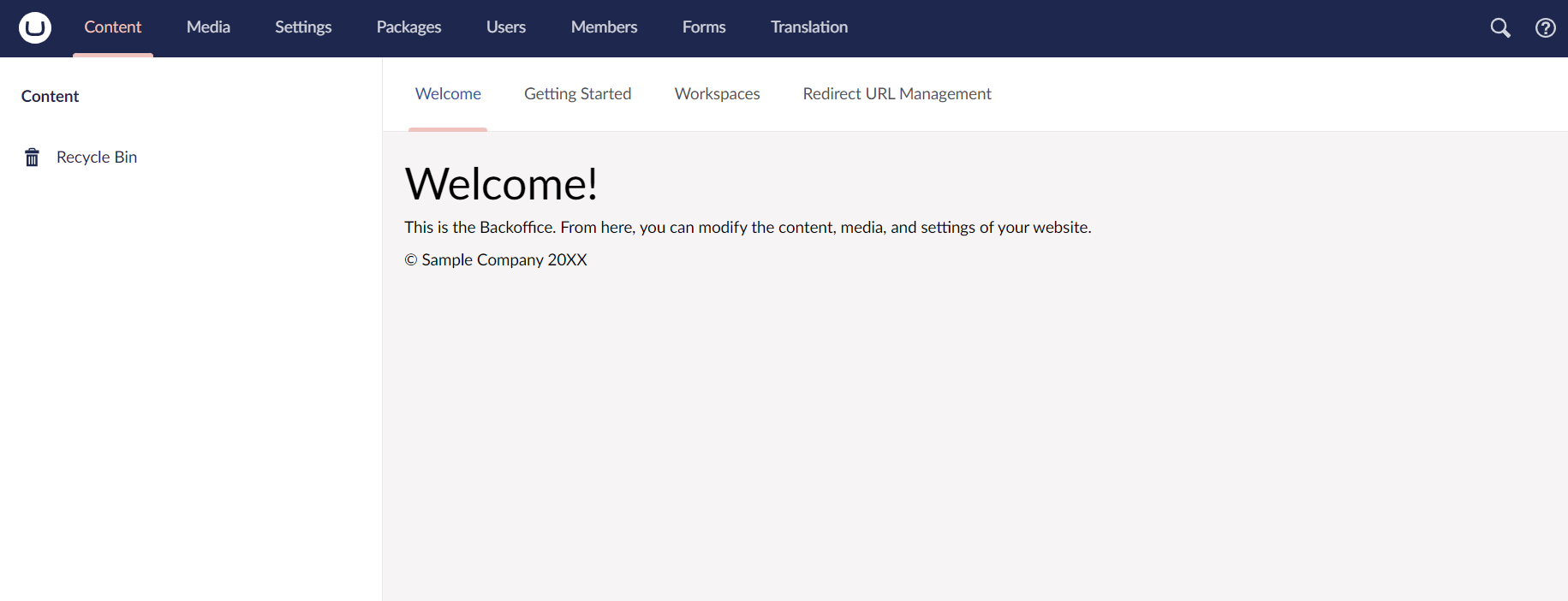

Dashboard with translation keys

If you don't see the brackets disappearing - you may need to restart the website.

Different languages

With the above steps completed, your dashboard is all set up to be translated across different backoffice languages. To test it out, you could, for example, add another language XML file, like da.xml for the Danish language.

<?xml version="1.0" encoding="utf-8" standalone="yes"?>
<language>
	<area alias="dashboardTabs">
		<key alias="welcomeDashboard">Velkommen</key>
	</area>
	<area alias="welcomeDashboard">
		<key alias="heading">Velkommen!</key>
		<key alias="bodytext">Dette er Backoffice. Herfra kan du ændre indholdet, medierne og indstillingerne på din hjemmeside.</key>
		<key alias="copyright">© Sample Selskab 20XX</key>
	</area>
</language>

The backoffice language can be changed in the Users section, if you wish to test out the translations.

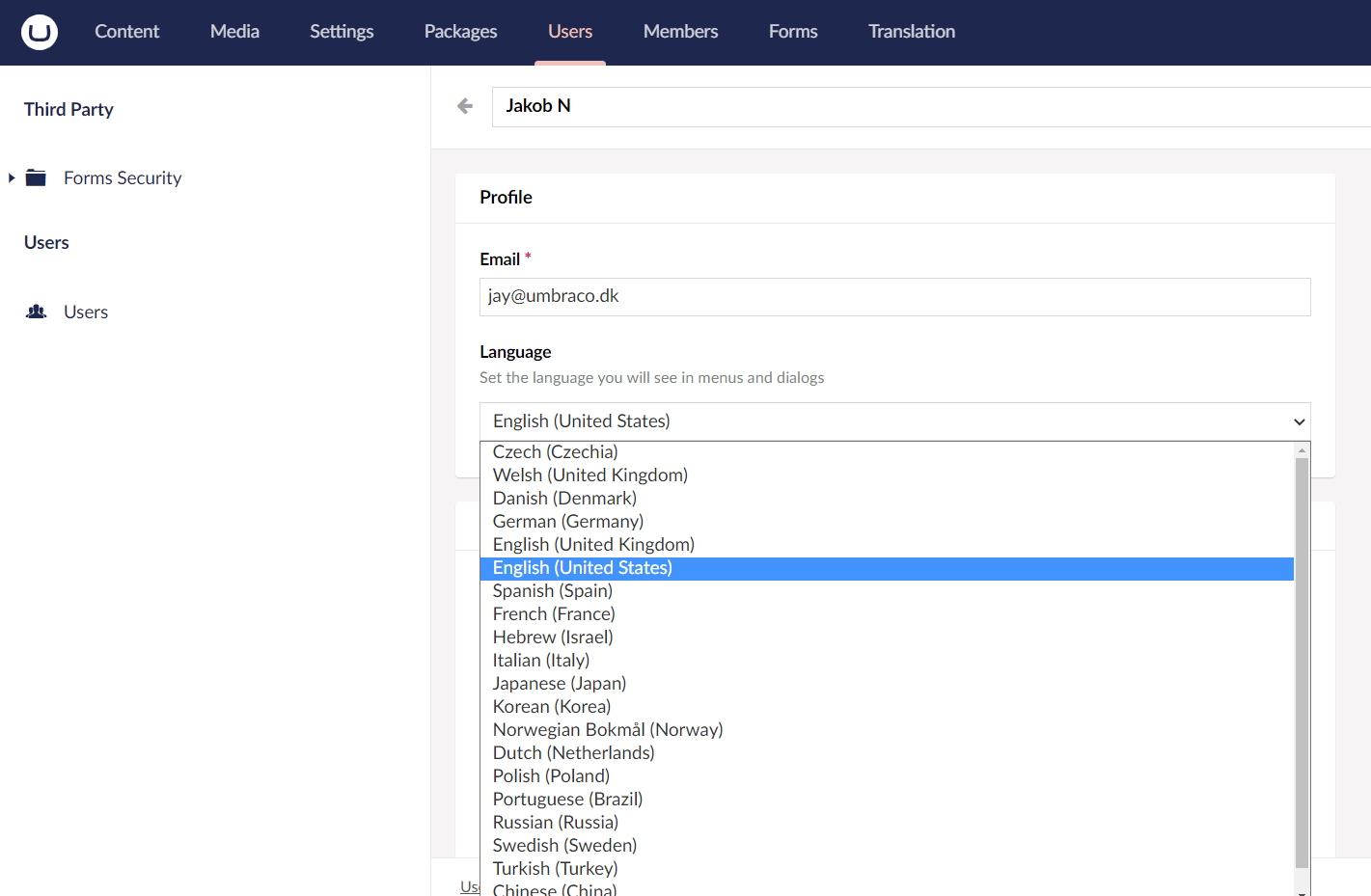

Changing backoffice language

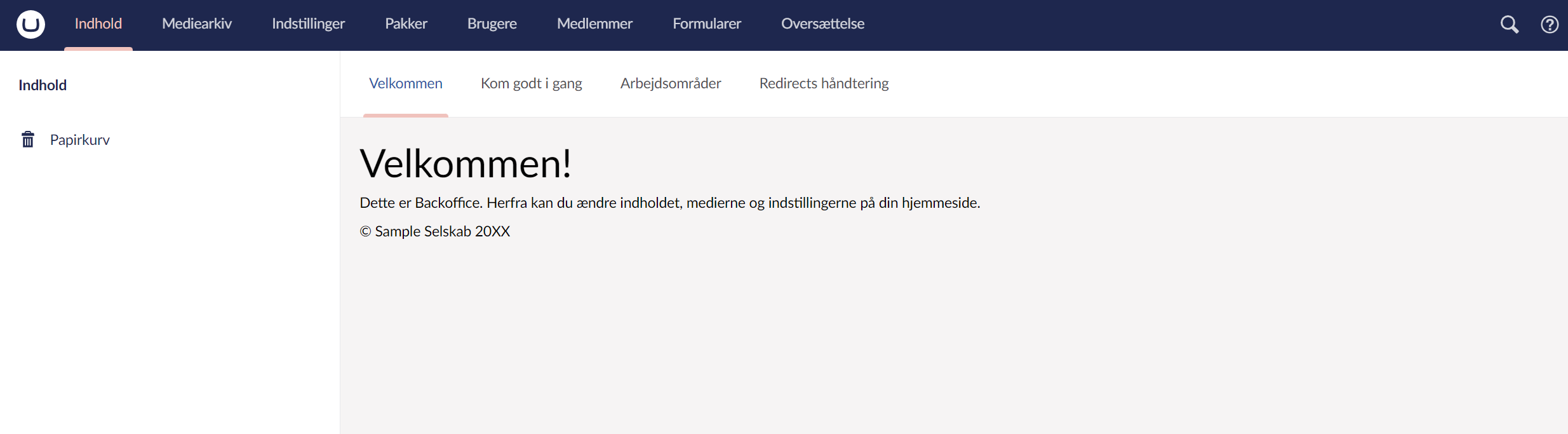

Dashboard in danish

Adding a bit of style

Congratulations! Job well done, however this is only the starting point. The dashboard can be styled as you want it to be with CSS, but there are a couple of further steps to undertake be able to apply a custom stylesheet to the dashboard:

Inside this package manifest we add a bit of JSON to describe the dashboard's required JavaScript and stylesheet resources:

{
    "dashboards":  [
        {
            "alias": "welcomeDashboard",
            "view":  "/App_Plugins/CustomWelcomeDashboard/WelcomeDashboard.html",
            "sections":  [ "content" ],
            "weight": -10,
            "access": [
                { "deny": "translator" },
                { "grant": "admin" }
            ]
        }
    ],
	"javascript": [
        /*javascript files listed here*/
    ],
    "css": [
        "~/App_Plugins/CustomWelcomeDashboard/customwelcomedashboard.css"
    ]
}

Now create a stylesheet in our CustomWelcomeDashboard folder called 'customwelcomedashboard.css', and add some styles, I don't know perhaps a bit of purple:

.welcome-dashboard h1 {
    font-size:4em;
    color:purple;
}

This stylesheet will now be loaded and applied to your dashboard. Add images and html markup as required.

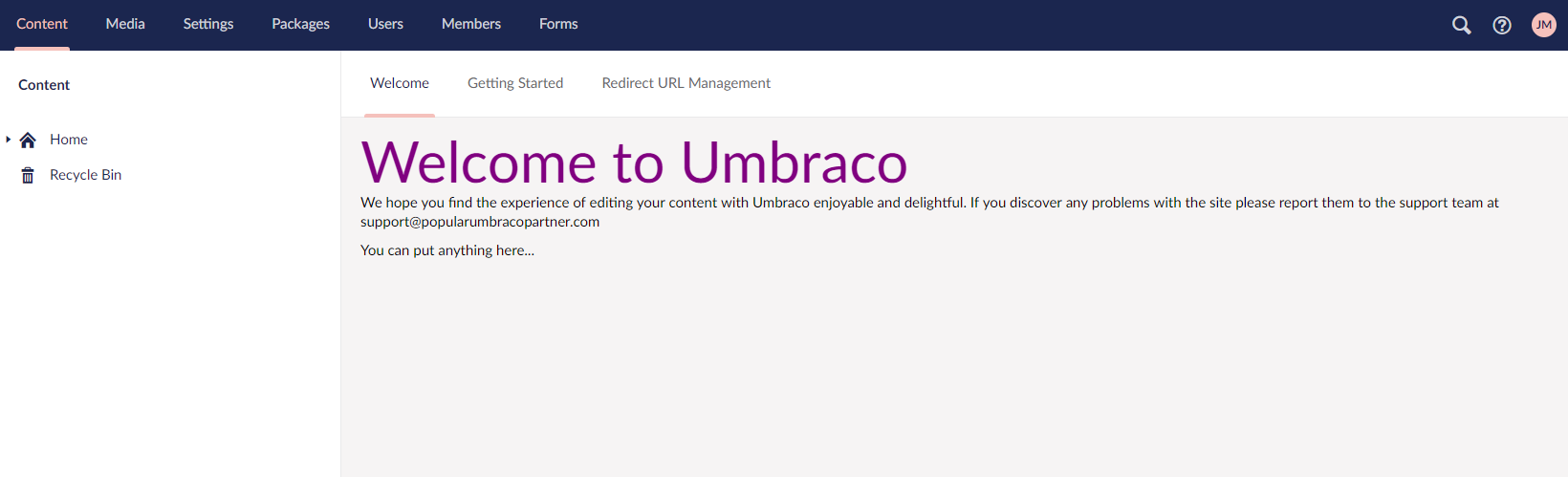

Custom Dashboard Welcome Message With styles...

One caveat is that the package.manifest file is loaded into memory when Umbraco starts up. If you are adding a new stylesheet or JavaScript file you will need to start and stop your application for it to be loaded.

For version 9 and above: If the title doesn't change color, Smidge may be caching the CSS and JavaScript. To clear the cache and get it to load in the new JavaScript and CSS, you can configure the Runtime minification settings in the appsettings.json file. When you reload the page, you'll see the colorful title.

For information on creating bundles of your site's CSS or JavaScript files in your code, see the Bundling & Minification for JavaScript and CSS section.

For version 8 and below: If the title doesn't change colour, you may be running the site without debugging and therefore ClientDependency Framework (CDF) will be caching the CSS and JavaScript. To clear the CDF cache and get it to load in the new JavaScript and CSS, you need to increment the version number in the ClientDependency.config file and press save. Now you can reload the page and see the colourful title.

Hopefully, now you can see the potential of what you could provide to an editor as a basic welcome dashboard when they log in to Umbraco.

Adding functionality

We can add functionality to the dashboard by associating an AngularJS controller with the HTML view.

Let's add a new file to the CustomWelcomeDashboard folder called 'customwelcomedashboard.controller.js' where our controller code will live.

We register this AngularJS controller to the Umbraco Angular module:

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope) {
    var vm = this;
    alert("hello world");
});

In our html view, we update the outer div to wire up the controller to the view:

<div class="welcome-dashboard" ng-controller="CustomWelcomeDashboardController as vm">

The use of vm (short for view model) is to enable communication between the view and the controller.

Finally, we need to update the package.manifest file to load the additional controller JavaScript file when the dashboard is displayed:

{
    "dashboards":  [
        {
            "alias": "welcomeDashboard",
            "view":  "/App_Plugins/CustomWelcomeDashboard/WelcomeDashboard.html",
            "sections":  [ "content" ],
            "weight": -10,
            "access": [
                { "deny": "translator" },
                { "grant": "admin" }
            ]
        }
    ],
	"javascript": [
        "~/App_Plugins/CustomWelcomeDashboard/customwelcomedashboard.controller.js"
    ],
    "css": [
        "~/App_Plugins/CustomWelcomeDashboard/customwelcomedashboard.css"
    ]
}

If all is setup fine we should now receive the 'Hello world' alert every time the dashboard is reloaded in the content section of Umbraco.

Going further - Umbraco Angular Services and Directives

Umbraco has a fine selection of angular directives, resources, and services that you can use in your custom property editors and dashboards. The details are here: Backoffice UI. For this example, it would be nice to welcome the editor by name. To achieve this we can use the userService to customize our dashboard welcome message and increase friendliness:

We inject the userService into our AngularJS controller like so:

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope,userService) {

and then we can use the userService's promise based getCurrentUser() method to get the details of the current logged in user:

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope, userService) {
    var vm = this;
    vm.UserName = "guest";

    var user = userService.getCurrentUser().then(function(user) {
        console.log(user);
        vm.UserName = user.name;
    });
});

Notice you can use console.log to write out to the browser console window what is being returned by the promise, it helps to debug, but also understand what properties are available to use.

Finally we can now update our view to incorporate the current user's name in our Welcome Message:

<h1><localize key="welcomeDashboard_heading">Default heading</localize> {{vm.UserName}}</h1>

Custom Dashboard Welcome Message With Current User's Name

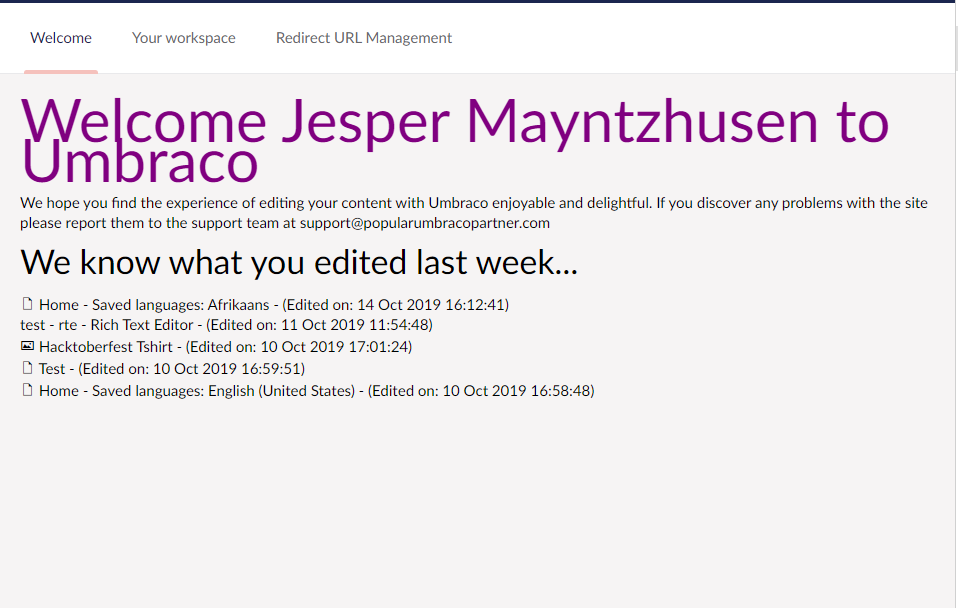

I know what you did last Tuesday

A returning editor may find it useful to see a list of the last few articles they have been editing, with a handy link to load and continue editing. This could be instead of having to remember, and find the item again in the Umbraco Content Tree.

We can make use of Umbraco's Angular resource for retrieving audit log information, the logResource using the getPagedUserLog method to return a list of activities the current user has performed recently.

We inject the logResource into our controller:

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope, userService, logResource) {

Add a property on our ViewModel to store the log information:

vm.UserLogHistory = [];

Add to our WelcomeDashboard.html view some markup using angular's ng-repeat to display a list of these log entries:

<h2>We know what you edited last week...</h2>
<ul>
    <li ng-repeat="logEntry in vm.UserLogHistory.items">{{logEntry.nodeId}} - {{logEntry.logType}} - {{logEntry.timestamp  | date:'medium'}}</li>
</ul>

Back in our controller we'll populate the array of entries using the logResource, the getPagedUserLog method expects to receive a JSON object containing information to filter the log by:

var userLogOptions = {
    pageSize: 10,
    pageNumber: 1,
    orderDirection: "Descending",
    sinceDate: new Date(2018, 0, 1)
};

These options should retrieve the last ten activities for the current user in descending order since the start of 2018, we pass the options into the getPagedUserLog like so:

logResource.getPagedUserLog(userLogOptions)
    .then(function (response) {
        console.log(response);
        vm.UserLogHistory = response;
    });

Take a look at the output of console.log of the response in your browser to see the kind of information retrieved from the log:

{pageNumber: 1, pageSize: 10, totalPages: 1, totalItems: 1, items: Array(1)}
    items: Array(1)
        0:
            $$hashKey: "object:1289"
            comment: "Published languages: English (United States)"
            entityType: "Document"
            logType: "PublishVariant"
            nodeId: 1055
            parameters: "English (United States)"
            timestamp: "2019-10-10T14:49:55.223Z"
            userAvatars: []
            userId: 1
            userName: "Jakob N"
    pageNumber: 1
    pageSize: 10
    totalItems: 1
    totalPages: 1

It's nearly all we need but missing information about the item that was saved and published!

We can use the entityResource, another Umbraco Angular resource to enables us to retrieve more information about an entity given its id.

Inject this into our angular controller:

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope, userService, logResource, entityResource) {

We need to loop through the log items from the logResource. Since this includes everything, we need to filter out activities we're not interested in eg, Macro Saves, or DocType Saves. Generally we need the entry in the log to have a nodeId, a 'logType' of 'save' and an entity type of Media or Content.

The entityResource then has a getById method that accepts the Id of the item and the entity 'type' to retrieve useful information about the entity, ie its name and icon.

The getById method is supported on the following entity types: Document (content), Media, Member Type, Member Group, Media Type, Document Type, Member and Data Type. This needs to be defined before we loop through the entries.

Putting this together:

  logResource.getPagedUserLog(userLogOptions)
        .then(function (response) {
            console.log(response);
            vm.UserLogHistory = response;

            // define the entity types that we care about, in this case only content and media
            var supportedEntityTypes = ["Document", "Media"];

            // define an empty array "nodes we know about"
            var nodesWeKnowAbout = [];

            // define an empty array "filtered log entries"
            var filteredLogEntries = [];

            // loop through the entries in the User Log History
            angular.forEach(response.items, function (item) {

              // if the item is already in our "nodes we know about" array, skip to the next log entry
              if (nodesWeKnowAbout.includes(item.nodeId)) {
                return;
              }

              // if the log entry is not for an entity type that we care about, skip to the next log entry
              if (!supportedEntityTypes.includes(item.entityType)) {
                return;
              }

              // if the user did not save or publish, skip to the next log entry
              if (item.logType !== "Save" && item.logType !== "Publish") {
                return;
              }

              // if the item does not have a valid nodeId, skip to the next log entry
              if (item.nodeId < 0) {
                return;
              }

              // now, push the item's nodeId to our "nodes we know about" array
              nodesWeKnowAbout.push(item.nodeId);

              // use entityResource to retrieve details of the content/media item
              var ent = entityResource.getById(item.nodeId, item.entityType).then(function (ent) {
                  console.log(ent);
                  item.Content = ent;
              });

              // get the edit url
              if (item.entityType === "Document") {
                  item.editUrl = "content/content/edit/" + item.nodeId;
              }
              if (item.entityType === "Media") {
                  item.editUrl = "media/media/edit/" + item.nodeId;
              }

              // push the item to our "filtered log entries" array
              filteredLogEntries.push(item);

            // end of loop
            });

            // populate the view with our "filtered log entries" array
            vm.UserLogHistory.items = filteredLogEntries;

        // end of function
        });

Finally update our view to use the additional retrieved entity information:

<h2>We know what you edited last week...</h2>
<ul class="unstyled">
    <li ng-repeat="logEntry in vm.UserLogHistory.items">
        <i class="{{logEntry.Content.icon}}"></i> <a href="/Umbraco/#/{{logEntry.editUrl}}">{{logEntry.Content.name}} <span ng-if="logEntry.comment">- {{logEntry.comment}}</span></a> - <span class="text-muted">(Edited on: {{logEntry.timestamp  | date:'medium'}})</span>
    </li>
</ul>

and we should have a list of recently saved content and media:

We know what you edited last week...

The url /umbraco/#/content/content/edit/1234 is the path to open up a particular entity (with id 1234) ready for editing.

The logResource has a few bugs prior to version 8.1.4, so if you are on a lower version this may not give the expected result.

I know what you want to do today

One of the key user journeys an editor will make in the backoffice is to create a new thing of some sort. If it is a person's job to create new blog entries in the same section two or three times a day, why not create them some handy shortcuts to achieve these common tasks?

We could add a shortcut to allow the users to add one of the most common type of pages they would be working with, like a blogpost.

Add the following to our view:

<div>
    <a class="btn btn-primary btn-large" href="/umbraco/#/content/content/edit/1065?doctype=BlogPost&create=true">
        <i class="icon-edit"></i>
        Create New Blog Post
    </a>
</div>

Where 1065, is the id of our blog section, and BlogPost is the alias of the type of document we want to create.

Handy shortcut buttons

At this point we are done with the tutorial, your files should contain this:

CustomWelcomeDashboardController:

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope, userService, logResource, entityResource) {
    var vm = this;
    vm.UserName = "guest";

    var user = userService.getCurrentUser().then(function (user) {
        console.log(user);
        vm.UserLogHistory = [];
        vm.UserName = user.name;
    });
    var userLogOptions = {
        pageSize: 10,
        pageNumber: 1,
        orderDirection: "Descending",
        sinceDate: new Date(2018, 0, 1)
    };

  logResource.getPagedUserLog(userLogOptions)
        .then(function (response) {
            console.log(response);
            vm.UserLogHistory = response;

            // define the entity types that we care about, in this case only content and media
            var supportedEntityTypes = ["Document", "Media"];

            // define an empty array "nodes we know about"
            var nodesWeKnowAbout = [];

            // define an empty array "filtered log entries"
            var filteredLogEntries = [];

            // loop through the entries in the User Log History
            angular.forEach(response.items, function (item) {

              // if the item is already in our "nodes we know about" array, skip to the next log entry
              if (nodesWeKnowAbout.includes(item.nodeId)) {
                return;
              }

              // if the log entry is not for an entity type that we care about, skip to the next log entry
              if (!supportedEntityTypes.includes(item.entityType)) {
                return;
              }

              // if the user did not save or publish, skip to the next log entry
              if (item.logType !== "Save" && item.logType !== "Publish") {
                return;
              }

              // if the item does not have a valid nodeId, skip to the next log entry
              if (item.nodeId < 0) {
                return;
              }

              // now, push the item's nodeId to our "nodes we know about" array
              nodesWeKnowAbout.push(item.nodeId);

              // use entityResource to retrieve details of the content/media item
              var ent = entityResource.getById(item.nodeId, item.entityType).then(function (ent) {
                  console.log(ent);
                  item.Content = ent;
              });

              // get the edit url
              if (item.entityType === "Document") {
                  item.editUrl = "content/content/edit/" + item.nodeId;
              }
              if (item.entityType === "Media") {
                  item.editUrl = "media/media/edit/" + item.nodeId;
              }

              // push the item to our "filtered log entries" array
              filteredLogEntries.push(item);

            // end of loop
            });

            // populate the view with our "filtered log entries" array
            vm.UserLogHistory.items = filteredLogEntries;

        // end of function
        });

});

WelcomeDashboard.html:

<div class="welcome-dashboard" ng-controller="CustomWelcomeDashboardController as vm">
    <h1><localize key="welcomeDashboard_heading">Default heading</localize> {{vm.UserName}}</h1>
    <p><localize key="welcomeDashboard_bodytext">Default bodytext</localize></p>
    <p><localize key="welcomeDashboard_copyright">Default copyright</localize></p>

    <h2>We know what you edited last week...</h2>
    <ul class="unstyled">
        <li ng-repeat="logEntry in vm.UserLogHistory.items">
            <i class="{{logEntry.Content.icon}}"></i> <a href="/Umbraco/#/{{logEntry.editUrl}}">{{logEntry.Content.name}} <span ng-if="logEntry.comment">- {{logEntry.comment}}</span></a> - <span class="text-muted">(Edited on: {{logEntry.timestamp  | date:'medium'}})</span>
        </li>
    </ul>

    <div>
        <a class="btn btn-primary btn-large" href="/umbraco/#/content/content/edit/1065?doctype=BlogPost&create=true">
            <i class="icon-edit"></i>
            Create New Blog Post
        </a>
    </div>
</div>

Custom External Data - creating your own angular resource

You can create your own custom angular services/resources, to interact with your own serverside data (using UmbracoAuthorizedJsonController), The property editor tutorial has a step explaining how to do this part 4 - Adding server-side data to a property editor.

The end

With all of the steps completed, you should have a functional dashboard that will let the logged-in user see the changes they made!

Hopefully this tutorial has given you some ideas on what is possible to do when creating a dashboard. Remember to check out the Angular API docs for more info on all of the resources and services you can find for the backoffice!

Customizing Umbraco sites

Extending the Umbraco Backoffice

Requirements

Install

Upgrading

Server Setup

Sections

Property Editors

Login

Content Templates

Infinite editing

LogViewer

Variants

Defining content

Creating Media

Members

Data Types

Scheduled Publishing

Adding Tabs

Dictionary Items

Relations

Users

Templates

Rendering Content

Rendering Media

Stylesheets Javascript

Partial View Macro Files

Partial Views

Umbraco Services

Subscribing To Events

Creating Forms

Debugging

Source Control

Inbound Pipeline

Controller Selection

Execute Request

Circular Dependencies

Searchable Trees

Sections

Trees

Build a Block Editor

Package Manifest

Property Actions

Property Value Converters

Tracking

Guides

Azure Blob Storage

Creating a nuget package

Creating a Package

Language Files For Packages

Maintaining Packages

Package Actions

Packages on Umbraco Cloud

Types of Packages

UmbPack

Uploading to Our

404handlers

applications

BaseRestExtensions

dashboard

EmbeddedMedia

ExamineIndex

ExamineSettings

fileSystemProviders

HealthChecks

Serilog

tinyMceConfig

trees

umbracoSettings

webconfig

Macros

Masterpages

Modelsbuilder

Mvc

DynamicPublishedContent

IPublishedContent

MemberShipHelper

UmbracoHelper

UDI identifiers

Authorized
