    Default Data/Media Types

    On this page you will find the media types and data types that have been added in Umbaco 8.14. These types are not created automatically after an upgrade. If you want to use the new types, you can create them yourself.

    Data Types

    UploadArticle

    The UploadArticle data type has the following configuration:

    • Property editor: FileUpload
    • Accepted file extensions: pdf, docx, doc

    UploadAudio

    The UploadAudio data type has the following configuration:

    • Property editor: FileUpload
    • Accepted file extensions: mp3, weba, oga, opus

    UploadVectorGraphics

    The UploadVectorGraphics data type has the following configuration:

    • Property editor: FileUpload
    • Accepted file extensions: svg

    UploadVideo

    The UploadVideo data type has the following configuration:

    • Property editor: FileUpload
    • Accepted file extensions: mp4, webm, ogv

    Media Types

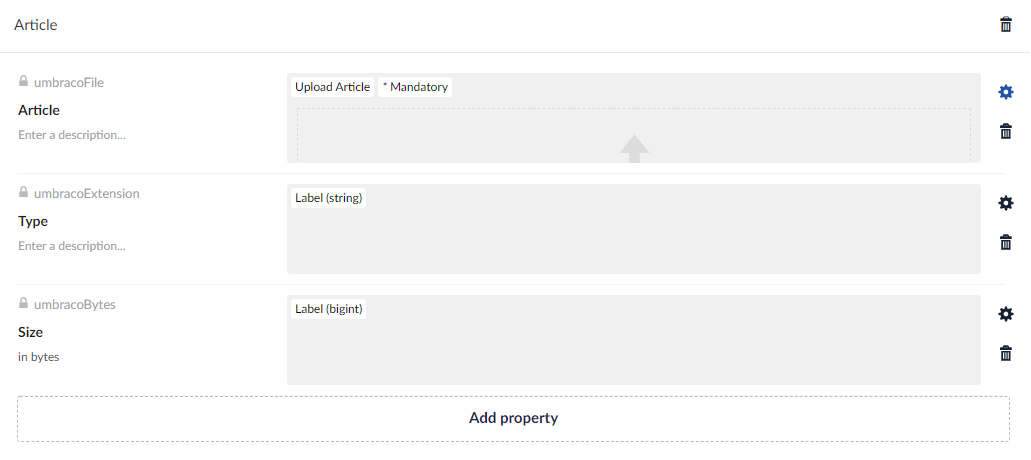

    UmbracoMediaArticle

    The UmbracoMediaArticle media type has the following properties:

    • umbracoFile - Upload File
    • umbracoExtension - Label (string)
    • umbracoBytes - Label (bigint)

    MediaArticle

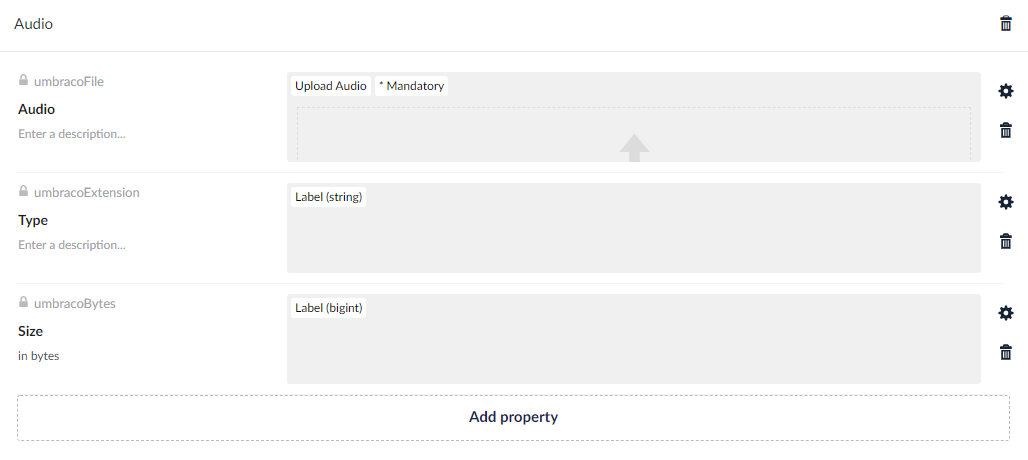

    UmbracoMediaAudio

    The UmbracoMediaAudio media type has the following properties:

    • umbracoFile Upload Audio
    • umbracoExtension Label (string)
    • umbracoBytes Label (bigint)

    MediaAudio

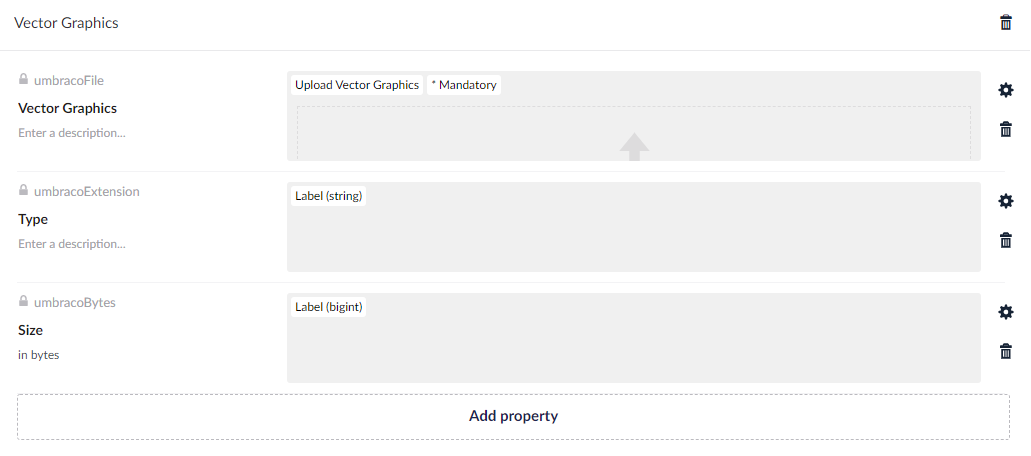

    UmbracoMediaVectorGraphics

    The UmbracoMediaVectorGraphics media type has the following properties:

    • umbracoFile - Upload Vector Graphics
    • umbracoExtension Label (string)
    • umbracoBytes Label (bigint)

    MediaVectorGraphics

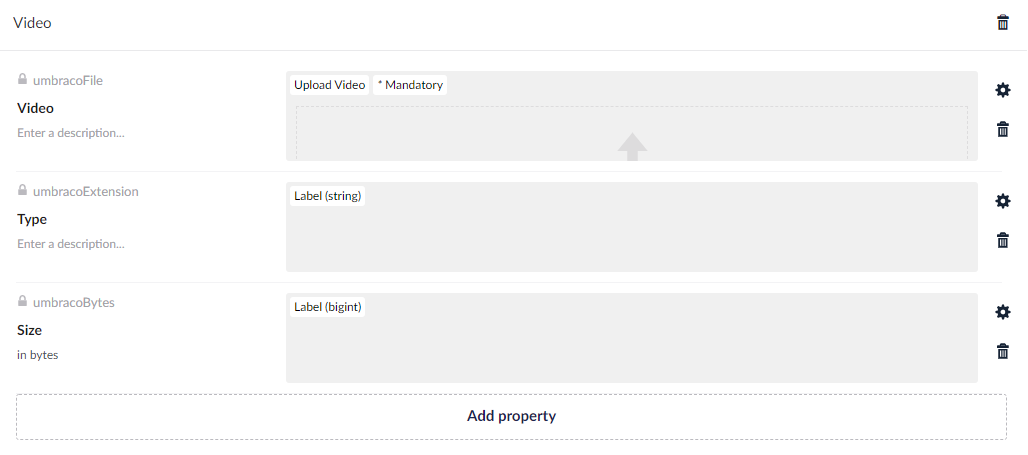

    UmbracoMediaVideo

    The UmbracoMediaVideo media type has the following properties:

    • umbracoFile - Upload Video
    • umbracoExtension - Label (string)
    • umbracoBytes - Label (bigint)

    MediaVideo
