UmbPack

UmbPack is an open source NuGet tool that can deploy packages to Our, and also help you pack your files into a package.

Creating an API key on Our.umbraco.com

Before you can start using the UmbPack tool, you need to create the package on Our. Once it has been set up you will then be able to add new versions of the package zip files using UmbPack.

To create an API key to use with the UmbPack tool you should first log in with your user and go to the manage packages section. There you will find a button under each package to manage API keys:

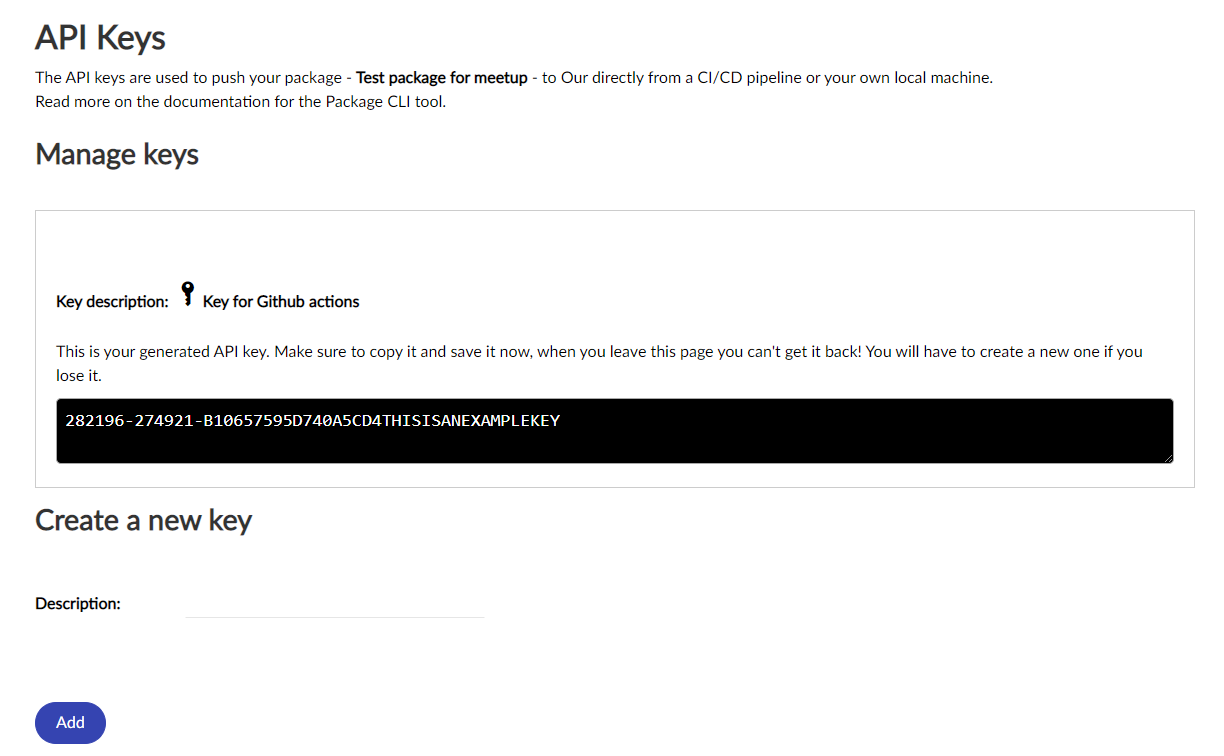

To generate a key, you need to add a description. When you click "Add" it will show you your key. Be aware that as soon as you refresh the page the key will be gone, and if you lose it you will have to generate a new one.

Once you copy the key one more step is needed in order to start using it: you must set up the UmbPack tool.

Installing UmbPack locally

To install the latest version of the tool locally you need to run the following command in a commandline:

dotnet tool install --global Umbraco.Tools.Packages

You will then be able to use it by running umbpack [command] in the command line afterwards. More on the commands of the tool below.

The Init command

The init command helps you create a package.xml file, which is the file in an Umbraco package that contains all the metadata for a package - things like author info, version compatibility, etc. The init command can be used by typing:

umbpack init

It is usually used to scaffold a package.xml file that you can then use with the pack command to create an Umbraco package.

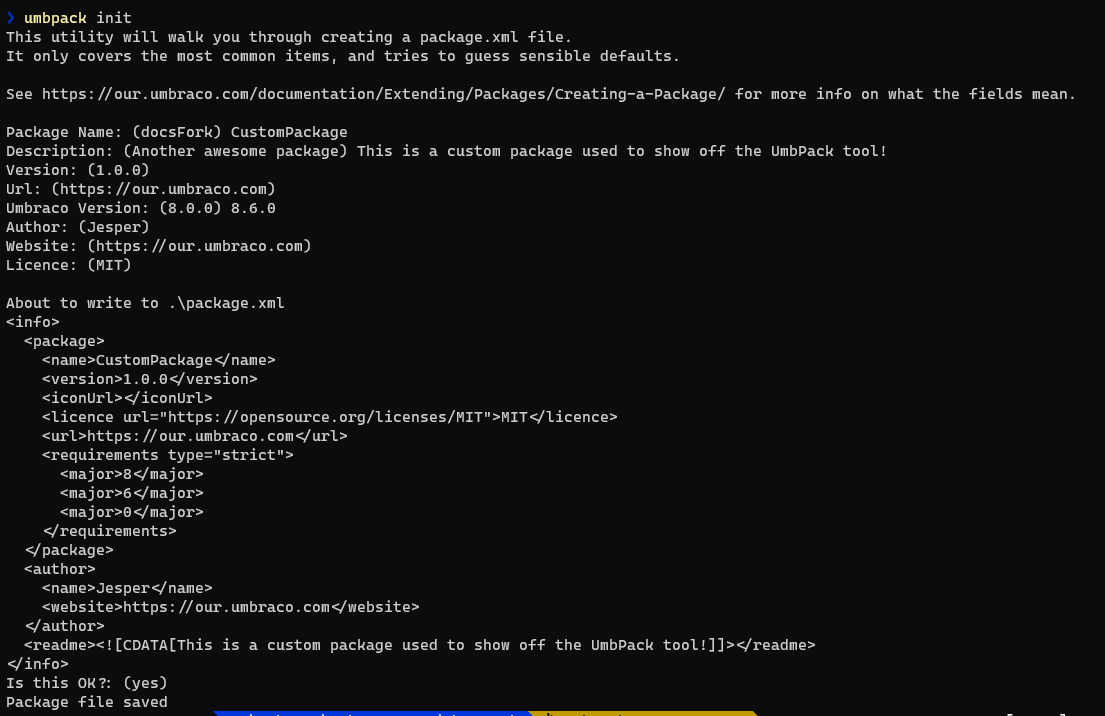

Here is an example of what it will look like in the commandline. It will also post back the package.xml for verification at the end:

The Pack command

The pack command is used to create an Umbraco zip package from some specified files. It is similar to what would happen if you picked the files via the backoffice.

The pack command has a few options. The only mandatory one is to point it at either a package.xml file or a folder containing a package.xml file:

Example of packing a folder

umbpack pack C:\Umbraco\Customers\test\Test.Web\App_Plugins\CustomPackage

In this example I wanted to pack up the ~App_Plugins/CustomPackage folder inside the .Web project. Often that is where you will store package files. The tool will ensure it adds all files to the package.xml inside the folder so if you continue to develop and add things a new pack will update it.

Example of packing based on a package.xml file

umbpack pack C:\Umbraco\Customers\test\package.xml

In this example you can imagine I keep a package.xml file outside of the project folders, inside the src folder of a Visual Studio solution. The benefit here is that it would not be part of the website, but could still be source controlled. Additionally this is a better approach if you want your package to include files outside of a specific folder.

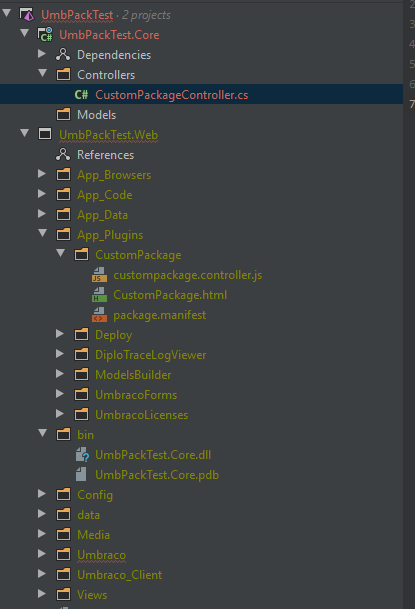

Let's say you have a solution that looks like this:

There is a .Web project and a .Core project. We have a controller in the .Core project that gets built into a dll in the .Web project, so the package files we would want to include are in the .Web project:

~/App_Plugins/CustomPackage
~/bin/UmbPackTest.Core.dll

In that case you can add a bit of special xml to the package.xml file that the UmbPack tool can recognize to include it all in the package files:

<files>
    <folder path="UmbPackTest.Web/App_Plugins/CustomPackage" orgPath="App_Plugins/CustomPackage" />
    <file path="UmbPackTest.Web/bin/UmbPackTest.Core.dll" orgPath="bin/UmbPackTest.Core.dll" />
</files>

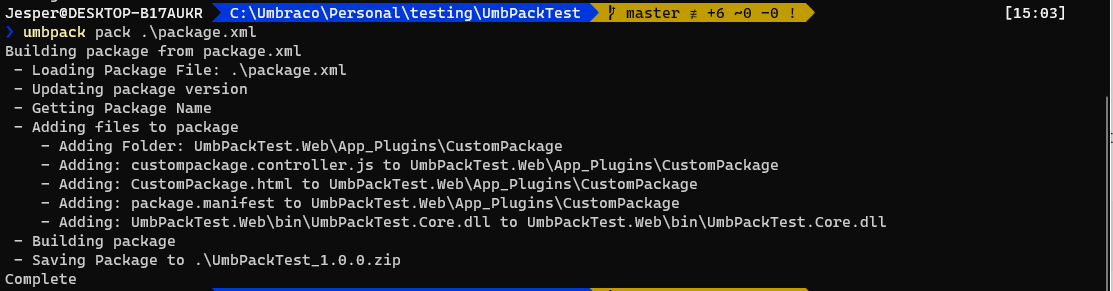

We can specify a folder and a file (or add additional xml elements for additional files), and when you then run the command targetting a package.xml file in the root of the solution:

You will have a zipped version of the package in the location you ran the tool (otherwise you can specify an output location -o). And it will have rewritten the file info to be valid package file info:

<files>
    <file>
        <guid>UmbPackTest.Core.dll</guid>
        <orgPath>/bin</orgPath>
        <orgName>UmbPackTest.Core.dll</orgName>
    </file>
    <file>
        <guid>custompackage.controller.js</guid>
        <orgPath>/App_Plugins/CustomPackage</orgPath>
        <orgName>custompackage.controller.js</orgName>
    </file>
    <file>
        <guid>CustomPackage.html</guid>
        <orgPath>/App_Plugins/CustomPackage</orgPath>
        <orgName>CustomPackage.html</orgName>
    </file>
    <file>
        <guid>package.manifest</guid>
        <orgPath>/App_Plugins/CustomPackage</orgPath>
        <orgName>package.manifest</orgName>
    </file>
</files>

Pack options

The pack command has a few options. As described above the mandatory value is a path to a package.xml file or a folder containing a package.xml file. There are 2 other configurations you can set on the pack command as well though:

-o - specifies an output folder. It defaults to the current folder, but you could do something like:

umbpack pack .\package.xml -o ../MyCustomPackageVersions

-v - specifies a version for the package. When packing a package it will name it as {packagename}_{version}.zip. By default it will take the version from the package.xml, but if running in CI/CD for example you may not want to update this value all the time, so you can overwrite it using:

umbpack pack .\package.xml -v 1.9.9

-n - specifies a name override for the package. By default the package will automatically generate a name based on the info in your package.xml file. This option allows you to override it yourself with either a full name or using a template. It will not affect the package.xml info, only the zip file name. The template options are:

{name} - replaced with the name of the package declared in the package.xml
{version} - replaced with the version of the release declared in the package.xml

Fixed naming:

umbpack pack .\package.xml -n MyPackageWithBadVersioning_FirstVersion.zip

Template naming:

umbpack pack .\package.xml -n {name}_{version}.zip

-p - specifies package.xml overrides. You can override any value in the package.xml with your own values when you pack the package. Can be a replacement for -v & -n as well. You can add any value in your package.xml enclosed by $ to then replace it with UmbPack. Example:

<info>
    <package>
      <name>$Name$</name>
      <version>$Version$</version>

umbpack pack .\package.xml -p Name=MyPackage;Version=1.0.0

This would pack your package and update your package.xml - note this happens before the automatic naming based on name and version as well. This is especially useful in CI/CD deployments where you may not know all your values before the run.

The push command

The push command requires an API key and a path to your package zip file, so will look something like this:

umbpack push .\UmbPackTest_1.0.0.zip -k [APIKEY]

However it also contains a few extra options. By default the pushed version will be set as the new current package version. You can change that by via the -c flag:

umbpack push .\UmbPackTest_1.0.0.zip -c false -k [APIKEY]

Also when you upload a new package you need to specify which versions it works with. It will default to the latest, but you can specify more with the -w flag:

umbpack push .\UmbPackTest_1.0.0.zip -w v860,v850,v840,v830,v820,v810,v800 -k [APIKEY]

You can also specify the compatible DotNetVersion if you would like, it defaults to 4.7.2:

umbpack push .\UmbPackTest_1.0.0.zip --DotNetVersion=4.5.2 -k [APIKEY]

Finally you can specify whether you want any older versions to be listed as archived on Our when you push, this is done using the -a flag. By default it will not archive anything, and you can either pass a regex string along or the word current to only archive the one that is set to current before your push. You can pass in several space seperated strings, and also use wildcards:

Will only archive the current package:

umbpack push .\UmbPackTest_1.0.0.zip -k [APIKEY] -a current

Will archive all other packages:

umbpack push .\UmbPackTest_1.0.0.zip -k [APIKEY] -a *

Will archive all packages based on a partial match:

umbpack push .\UmbPackTest_1.0.0.zip -k [APIKEY] -a UmbPackTest_0*

Combining several archive patterns:

umbpack push .\UmbPackTest_1.0.0.zip -k [APIKEY] -a current UmbPackTest_0* UmbPackTest-Assets_0*
