    Grid Editors

    A grid editor is the component responsible for getting data into the grid - that could be a text field or a media picker. They're built in the same way as a property editor thus consists of 3 parts:

    • .html view file
    • .js controller
    • .cshtml server side renderer

    The 'view' is what the editor sees, the 'controller' handles how it acts and the 'renderer' determines how the entered data is rendered in the template.

    Default Grid editors

    The default editors are specified in /config/grid.editors.config.js. They are written in the JSON format and each editor is an object like so:

        "name": "Rich text editor",
        "alias": "rte",
        "view": "rte",
        "icon": "icon-article"

    Custom Grid editors

    You can customize the built-in editors to tailor the grid to your need.


    It is recommended that you define custom editors in a package.manifest file (not in the config file described above) like so:

                "name": "Rich text editor",
                "alias": "rte",
                "view": "rte",
                "icon": "icon-article"

    While the root JSON element of /config/grid.editors.config.js is an array of grid editors, package.manifest files start with a JSON object with a number of different properties - one of them being gridEditors.

    The package manifest should be placed in a folder inside the /App_Plugins/ folder - for instance /App_Plugins/{YourPackageName}/package.manifest. You can define as many grid editors you want and it can be done over multiple manifests so you can use grid editors from packages etc. With the package.manifest file in place, Umbraco will automatically pick it up during startup.

    You can read more about package.manifest files in general at the Package Manifest page.

    Grid editor configuration

    For a grid editor, the required values are:

    • name: The name of the editor
    • alias: Unique alias of the editor
    • icon: Icon shown to the editor, uses same icon classes as the rest of
    • view the view defines the editor used to enter a value. By default Umbraco will look in /umbraco/views/propertyeditors/grid/editors for a html view to use - but you can pass in your own path

    In Umbraco 8.4 you can also add a name template for generating grid item labels using the syntax {{ value.propertyAlias }}.

    • If you would like to include the index position in the label, you can use {{$index}}.
    • If your editor links to a content, media or member node, you can use the Angular filter {{ value.udi | ncNodeName }} to show the node name rather than the node ID.
    • If your editor is a rich text editor, you can use the Angular filter {{ value | ncRichText }} to show the unformatted text.

    The built-in views you can use are:

    • textstring
    • rte
    • embed
    • macro
    • media

    In most cases, you will either use the textstring or media view, or build your own from scratch. The textstring and media editors come with additional configuration to make it quick to customise.

    Sample textstring config
        "name": "Headline",
        "alias": "headline",
        "view": "textstring",
        "icon": "icon-coin",
        "config": {
            "style": "font-size: 36px; line-height: 45px; font-weight: bold",
            "markup": "<h1>#value#</h1>"

    In this sample, the config.style value is applied to the editor so users can see an accurate preview in the backoffice. This will be applied as as inline styling to the textarea in the backoffice.

    The config.markup is the string rendered server side in your template. #value#will be replaced with the actual value

    Sample media config
        "name": "Square Image",
        "alias": "squareImage",
        "view": "media",
        "icon": "icon-picture",
        "config": {
            "size": {
                "height": 200,
                "width": 200

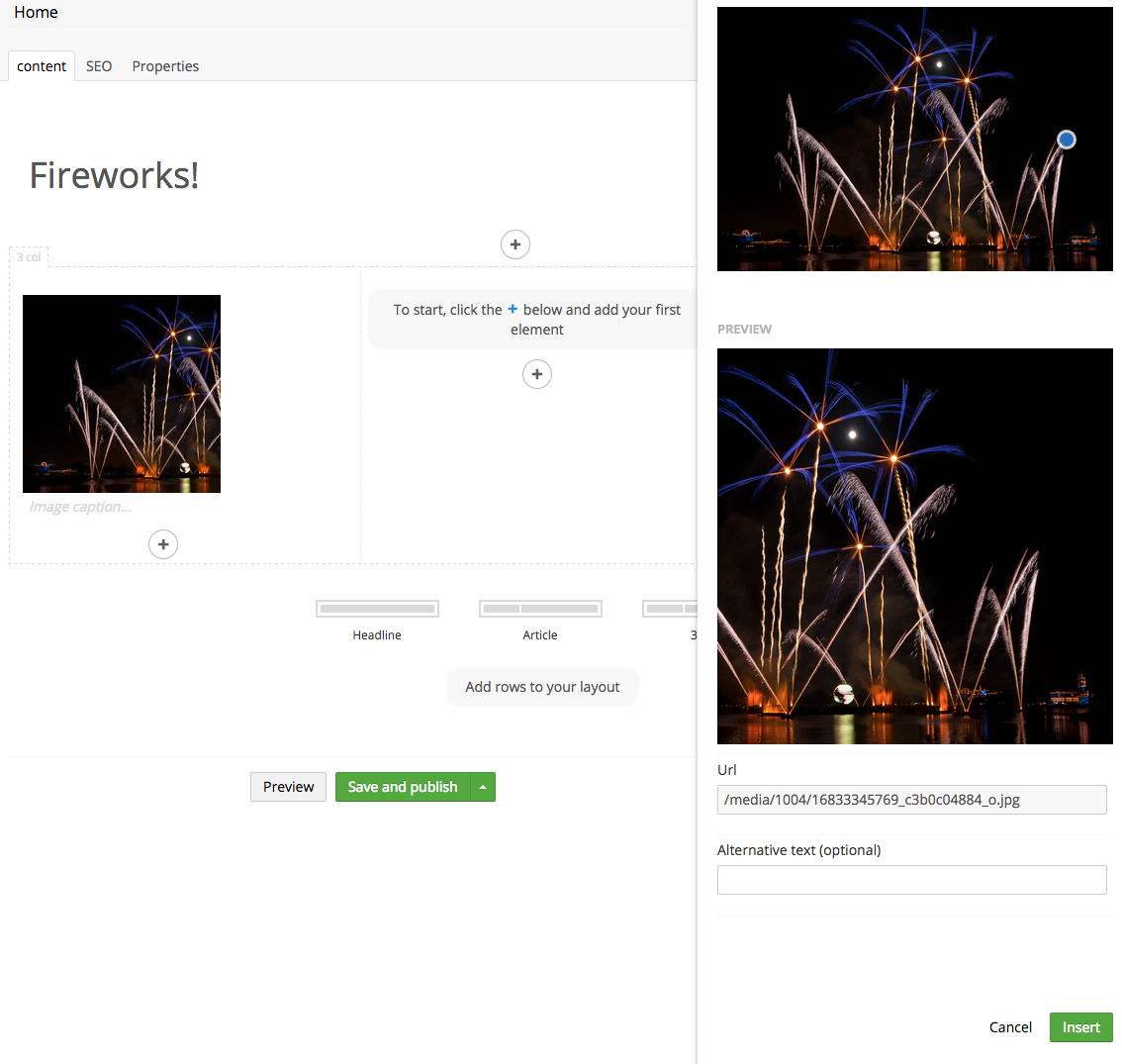

    In this sample config.size will resize the image according to height and width. The above example will result in a rendered image that is 200x200 pixels no matter the size of the uploaded image. If the ratio of the size differs from the uploaded image it is possible to set a focal point that determines how the image should be cropped. Resizing

    Sample macro config
        "name": "Your Custom Macro",
        "alias": "yourCustomMacroGridEditor",
        "view": "macro",
        "icon": "icon-smiley",
        "config": {
            "macroAlias": "AliasOfYourMacro"

    In this sample a new option will appear in the Choose type of content with direct access to the macro.
