    Slider

    Alias: Umbraco.Slider

    Returns: decimal or Umbraco.Core.Models.Range<decimal>

    Pretty much like the name indicates this Data type enables editors to choose a value with a range using a slider.

    There are two flavors of the slider. One with a single value picker. One with a minimum and maximum value.

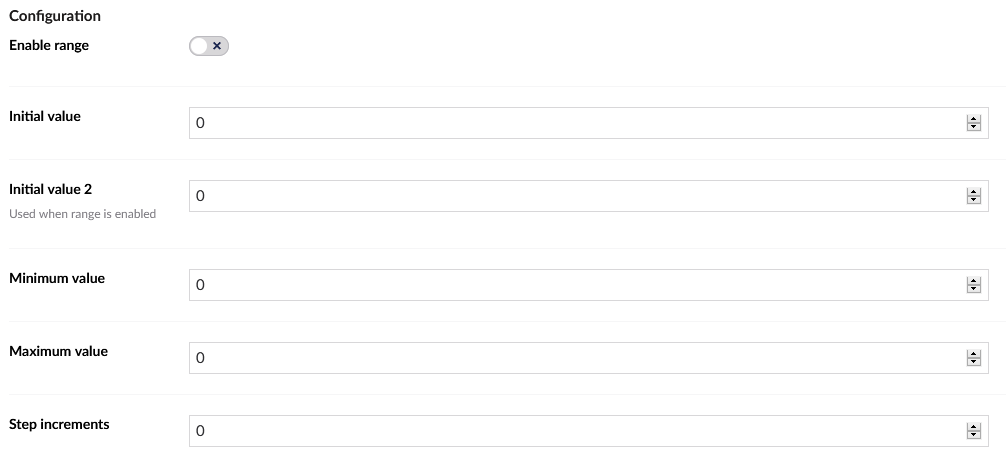

    Data Type Definition Example

    Slider Data Type Definition

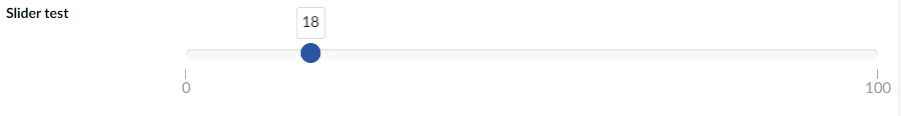

    Content Example

    Slider Content Slider Content

    MVC View Example

    Without Modelsbuilder

    @if (Model.HasValue("singleValueSlider"))
    {
        var value = Model.Value<decimal>("singleValueSlider");
        <p>@value</p>
    }

    @if (Model.HasValue("multiValueSlider"))
    {
        var value = Model.Value<Umbraco.Core.Models.Range<decimal>>("multiValueSlider");
        <p>@(value.Minimum) and @(value.Maximum)</p>
    }


    With Modelsbuilder

    // with a range off
    @if (Model.SingleRangeSlider != null)
    {
        var value = Model.SingleRangeSlider;
        <p>@value</p>
    }

    // with a range on
    @if (Model.MultiValueSlider != null)
    {
        var minValue = Model.MultiValueSlider.Minimum;
        var maxValue = Model.MultiValueSlider.Maximum;
        <p>@minValue and @maxValue</p>
    }


    Add values programmatically

    See the example below to see how a value can be added or changed programmatically. To update a value of a property editor you need the Content Service.

    With a range off

    @{
        // Get access to ContentService
        var contentService = Services.ContentService;

        // Create a variable for the GUID of the page you want to update
        var guid = Guid.Parse("32e60db4-1283-4caa-9645-f2153f9888ef");

        // Get the page using the GUID you've defined
        var content = contentService.GetById(guid); // ID of your page

        // Set the value of the property with alias 'singleValueSlider'.
        content.SetValue("singleValueSlider", 10);

        // Save the change
        contentService.Save(content);
    }


    With a range on

    @{
        // Get access to ContentService
        var contentService = Services.ContentService;

        // Create a variable for the GUID of the page you want to update
        var guid = Guid.Parse("32e60db4-1283-4caa-9645-f2153f9888ef");

        // Get the page using the GUID you've defined
        var content = contentService.GetById(guid); // ID of your page

        // Create a variable for the desired value of the 'multiValueSlider' property
        var range = new Range<decimal> {Minimum = 10, Maximum = 12};

        // Set the value of the property with alias 'multiValueSlider'.
        content.SetValue("multiValueSlider", range);

        // Save the change
        contentService.Save(content);
    }


    Although the use of a GUID is preferable, you can also use the numeric ID to get the page:

    @{
        // Get the page using it's id
        var content = contentService.GetById(1234);
    }


    If Modelsbuilder is enabled you can get the alias of the desired property without using a magic string:

    @{
        // Set the value of the property with alias 'singleValueSlider'
        content.SetValue(Home.GetModelPropertyType(x => x.SingleValueSlider).Alias, 10);

        // Set the value of the property with alias 'multiValueSlider'
        content.SetValue(Home.GetModelPropertyType(x => x.MultiValueSlider).Alias, new Range<decimal> {Minimum = 10, Maximum = 12});
    }
